Execution Monitor Section

This section contains a guide on the Execution Monitor of UnifiedViews and the available options there.

The Execution Monitor section of the main menu is used to view detailed information about pipeline execution.

The following topics are contained in this section to guide you through the options:

Note

Terms special to UnifiedViews and their meaning are explained in our UnifiedViews Glossary.UnifiedViews Glossary

Execution Monitor Overview

This section contains a short guide on the Execution Monitor and it options and settings.

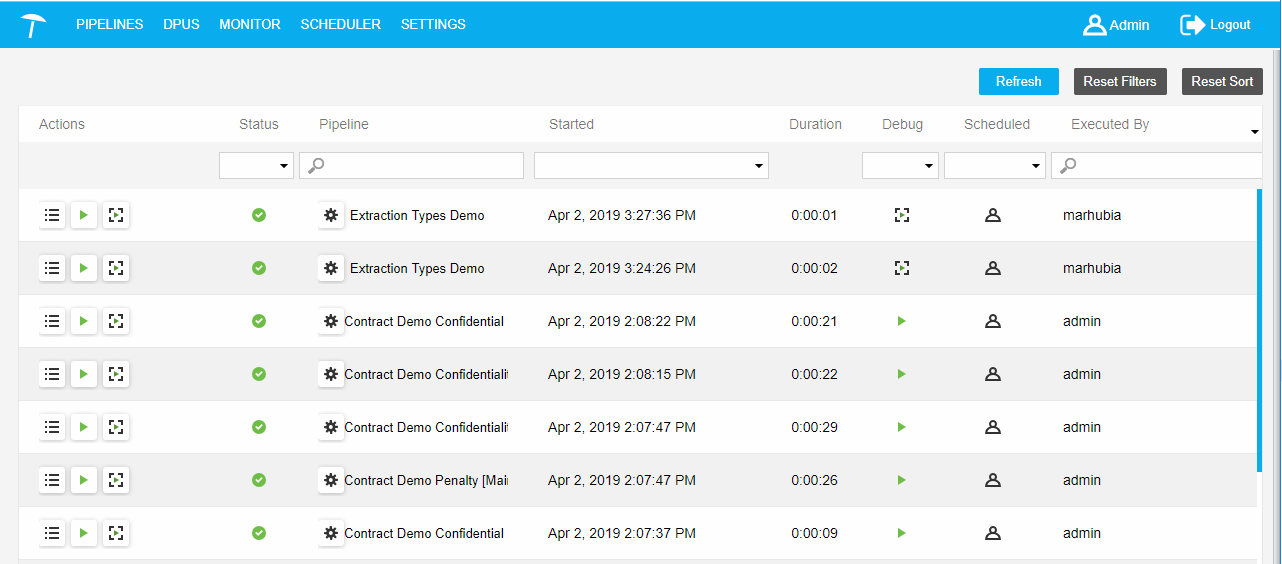

The Execution Monitor section is represented as a table that contains the following columns.

Note

You can sort by the columns Status, Pipeline, Started, Debug, Scheduled, or Executed by.

Column

Icon

Option

Description

Actions

Debug data

Note

This icon has two functions, depending on how the pipeline is executed.

is displayed for executions that have been started in debug mode.

Show log

is displayed for executions that have been started in common mode.


Cancel

is displayed only for executions which are in RUNNING and SCHEDULED states.

Run pipeline

is displayed for executions which are in all states except RUNNING and CANCELLING.

Debug pipeline

is displayed for executions which are in all states except RUNNING and CANCELLING.

Status

actual status of the executions, depicted by these icons


SCHEDULED


RUNNING


CANCELLING


CANCELLED


FAILED


FINISHED SUCCESS


FINISHED WARNING

Pipeline


Details icon

name of the executed pipeline - click the icon to display the details of this pipeline

Started

-

Date and time of the last run of this pipeline

Duration

-

Time that the execution has taken.

Debug

24578346.png / 26411263.png

shows if a pipeline has been run on debug mode or in run mode

Scheduled


shows if a pipeline has been scheduled or not

Executed by

user name of the user that executed the pipeline

Above the table, there are these buttons:

  • Refresh: for refreshing the table.

  • Reset Filers: for clearing filters of the table.

  • Reset Sort: to reset custom sorting.

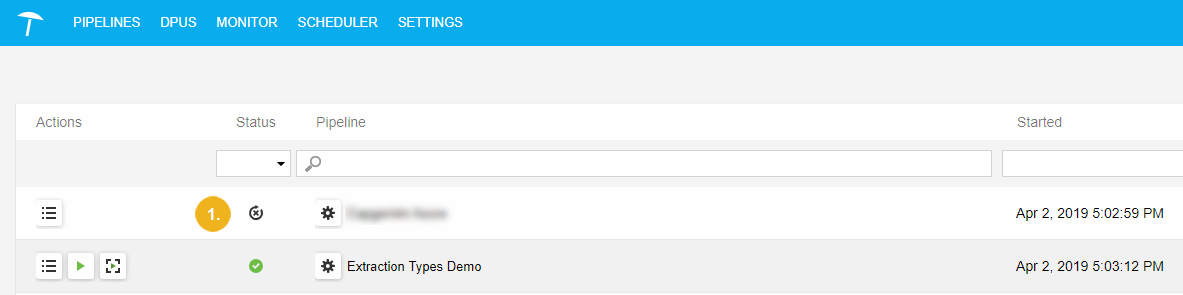

Execution records are created and placed into the table after the following actions:

Execution Monitor - Options in Execution Records

This section contains a short guide on options that are available inside the Execution Monitor.

Cancel Execution of a Pipeline

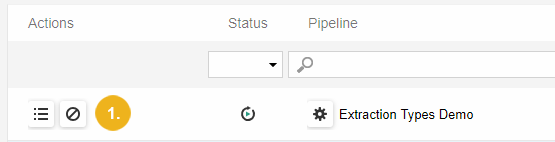

You are authorized to interrupt the pipeline execution if this button is visible. Click to cancel the execution.


Note

The Cancel button is available in an execution table only if the pipeline execution is in states RUNNING or SCHEDULED.

Run/Debug a Pipeline

The user is able to repeat the pipeline running directly from Execution Monitor section. Click Run, or Debug for running in debug mode .

Note

New executions will be shown in the table.

Debug Data/Show Log

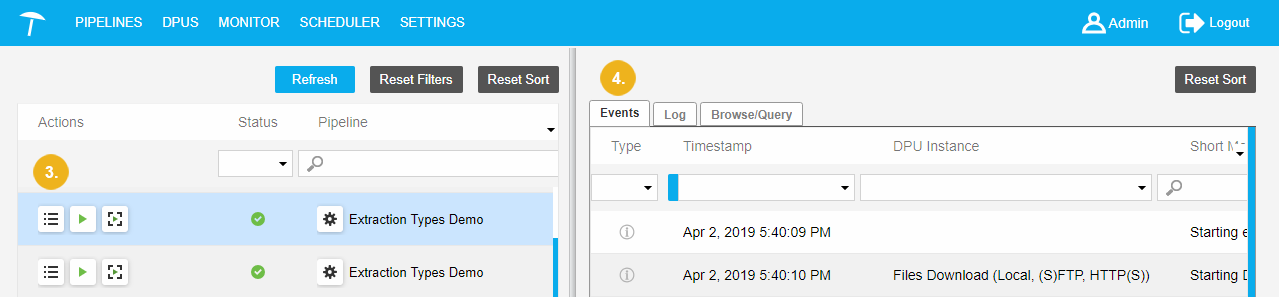

Click Debug Data (3), to follow the events, logs and (when debugging) data flow between DPUs.

The Viewer for Execution Details (VED) appears as a slide window on the right side (4). VED lists all records of the pipeline execution.


The user may follow the data flow between DPUs. VED consists of three tabs:

Viewer for Execution Details (VED) - Tabs

This section contains a guide on the Viewer for Execution Details (VED) and its tabs.

Viewer for Execution Details (VED) - Events Tab

The Events tab consists of the following columns:

  • Type: type of an event.

  • Date: date when an event was started.

  • DPU Instance: DPU on which the action is performed.

  • Short Message: description of an event.

The page of latest events is displayed by default:

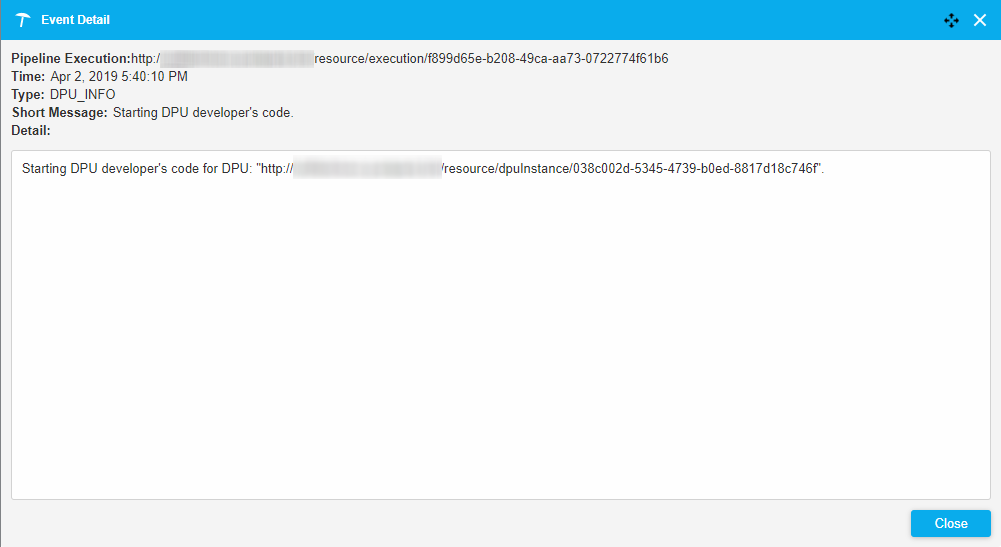

You can open a record detail by double clicking the respective row in the table:


Viewer for Execution Details (VED) - Log Tab

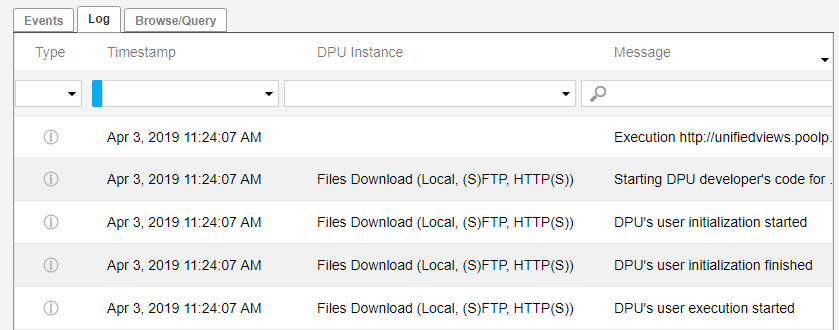

The Log tab consist of the columns: Type, Timestamp, DPU Instance, and Message.

The table can be filtered by these parameters. The page with the latest logs is displayed by default.

  • Double click on the row in the Log table to display the Log Message Detail dialogue.

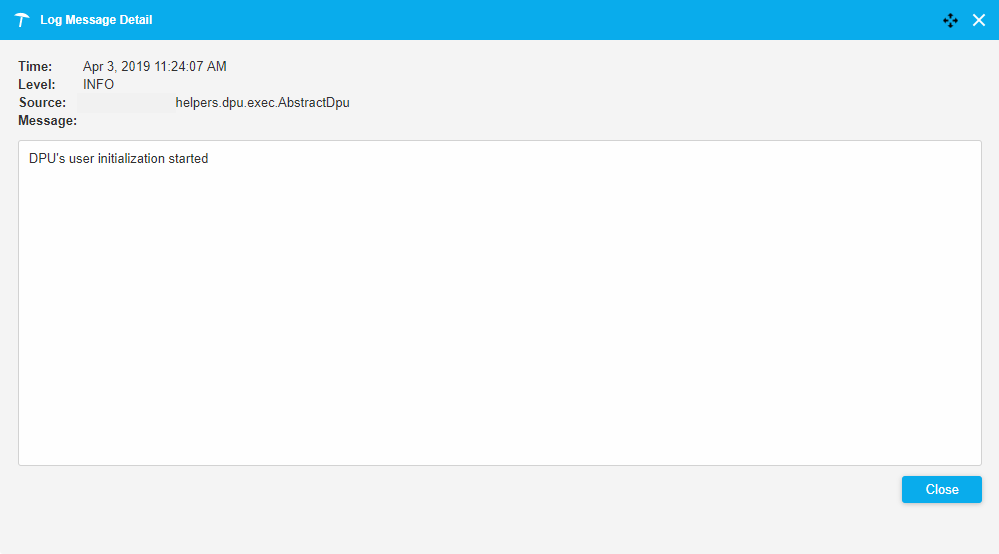

  • The dialogue contains: Time, Level, Source and Message fields with information.

  • Use the black Cross icon in the top right-hand corner to toggle the Log Message Details dialogue to either have it fill the browser window or stay in front.


User can download logs in plain text format on the Options tab.

Viewer for Execution Details (VED) - Browse/Query Tab

The Browse/Query tab is enabled if the pipeline is running in debug mode only. In all other cases this tab is disabled.

Select an item in the drop down Select DPU, to enable all other components of the tab.

  • The Select Data Unit drop down displays the first input data unit per default.

    • If there are no input data units, then the first output data unit is shown.

  • You can select the Input/Output check boxes. Based on that, the selection of data units is adjusted and again the first data unit is selected.

  • You can change the value of the Select Data Unit drop down.

Browse Data

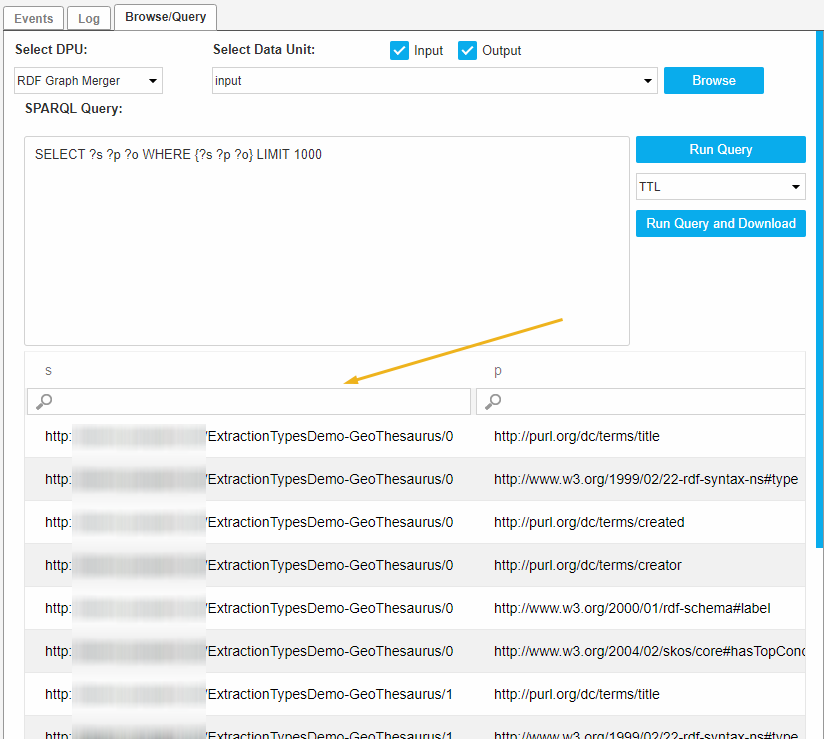

When the Select Data Unit is filled, you can show the data by clicking Browse, which displays all triples in the data unit .

This is internally the same as running construct {?s ?p ?o} where {?s ?p ?o}.

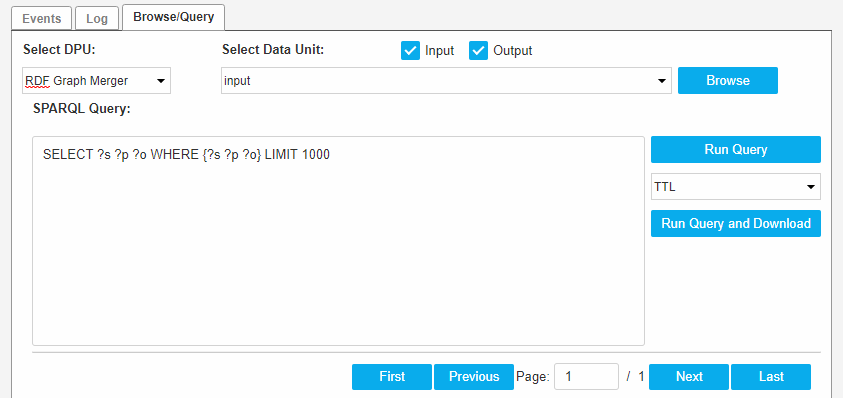

When clicking on the Browse button, the query is prefilled with the default construct query.


If the user changes Select DPU to be browsed the available data units are refreshed. Similarly if the user changes the Input/Output selection check boxes, data units are refreshed. But the view of the data is refreshed only when he clicks on the Browse again.

Run a SPARQL Query

You can define your own queries and run them.

  • Enter your query into the SPARQL Query text area and click Run Query.

Note

If you click Run Query, you must provide the query string, otherwise a warning is displayed.

  • The result of the query will be shown in the table below. Queries are divided into CONSTRUCT and SELECT queries.

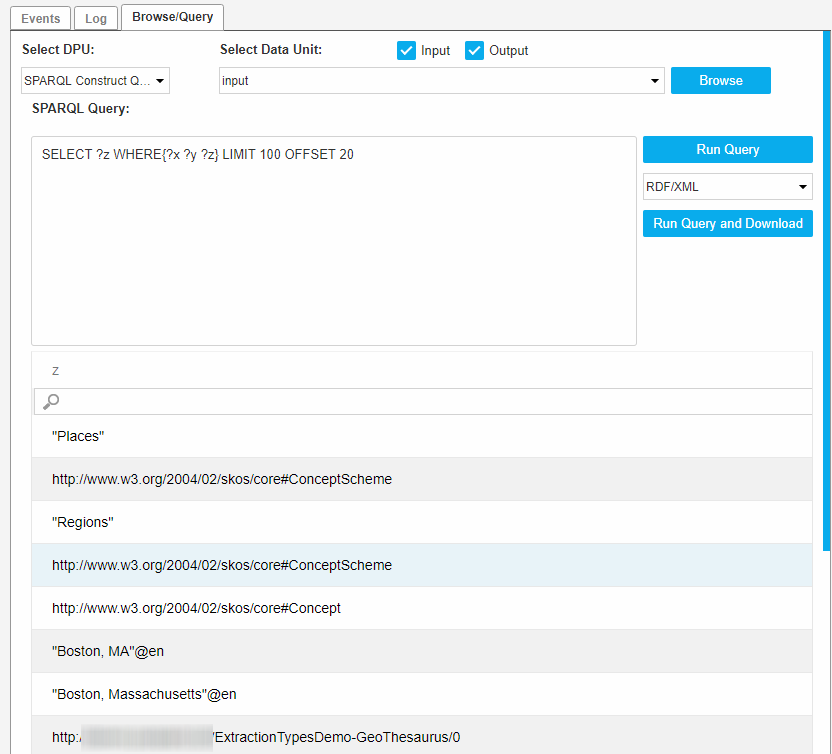

Example of a SELECT Query

SPARQL Query: SELECT ?z WHERE{?x ?y ?z} LIMIT 100 OFFSET 20

Example of CONSTRUCT Query

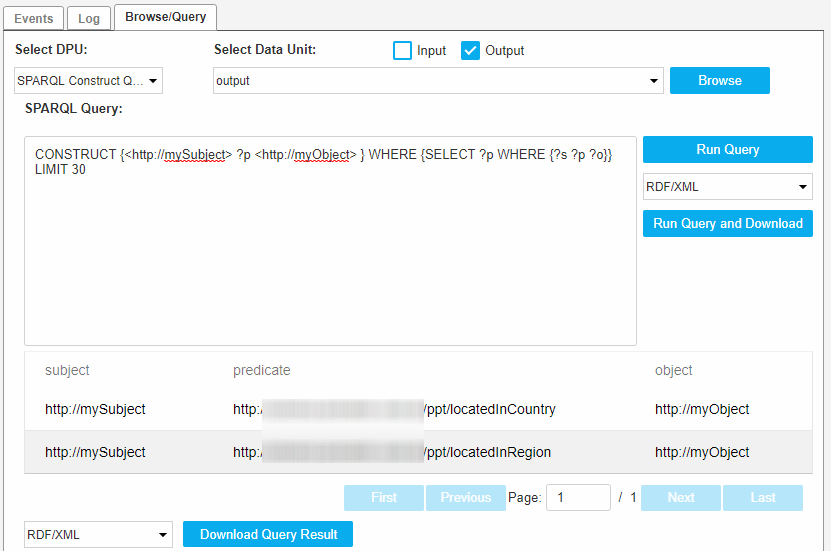

SPARQL Query: CONSTRUCT {<http://mySubject> ?p <http://myObject> } WHERE {SELECT ?p WHERE {?s ?p ?o}} LIMIT 30

  • If you change the Selected DPU to be browsed, available data units are refreshed.

  • Similarly, if you change the Input/Output selection check boxes, data units are refreshed.

  • On the other hand, the result of the query is refreshed only as a result of clicking Run Query.

Download Query

You can download the results of the running query. Click Download Query Result beneath the table showing the result of a running query.

After that the data will be downloaded in the selected format to the destination you choose.

Download formats are different for two types of queries:

  • Construct query: formats :RDF/XML, TTL, N3, N-TRIPLES, TRIX and TriG.

  • Select query: formats are:

    • XML

    • CSV

    • JSON

    • TSV

You can click the Run Query and Download button. In this case you have to provide the query string.

Otherwise it throws a warning. The data will be downloaded in the selected format to the destination you choose. No data will be shown in the table.

Execution States in the UnifiedViews Execution Monitor

This section contains a short guide on the individual execution states visible in the Execution Monitor.

SCHEDULED

SCHEDULED state means that the pipeline execution record is stored in the database, but the execution has not started. The pipeline execution in this state is created by scheduler, execution is scheduled for the exact date and time. Also the pipeline execution in SCHEDULED state can be created in case of pressing Run or Debug pipeline buttons when the backend is offline.

RUNNING

RUNNING means that the pipeline currently is in execution state. For each running pipeline the staging data for each DPU in the pipeline are stored in the staging database . The data are stored under automatically generated names. Also a record about execution is stored in database. The record contains last finished DPU.

CANCELLING

CANCELLING state is an interim status. It appears after you have clicked Cancel when the pipeline has been in RUNNING or SCHEDULED states. The execution record will remain in the CANCELLING state until the execution is CANCELLED.

CANCELLED

CANCELLED state means that the pipeline execution has been interrupted by the Cancel button.

FAILED

FAILED state means that the pipeline execution started, but a fatal unrecoverable error has occurred somewhere in the execution process.

Therefore the pipeline execution has not finished, which means that a loader has not loaded all the data (or any at all) being processed into intended destination. Graphs in the staging database cannot be deleted in this state, so they may be used for debugging.

FINISHED SUCCESS

FINISHED SUCCESS state means that the pipeline execution finished without any reported errors, a loader successfully loaded all the data into the knowledge base.

FINISHED WARNING

FINISHED WARNING state means that the pipeline execution finished, however some recoverable errors occurred during execution. Graphs in the staging database cannot be deleted in this state, so they may be used for debugging.
