Ontologies Details View

This section contains a short guide on the Details View of ontologies.

You can access the Details View of ontologies using the Ontology Management.

The Details View for Core Ontologies and Custom Ontologies is basically the same. Except that core ontologies cannot be modified or extended.

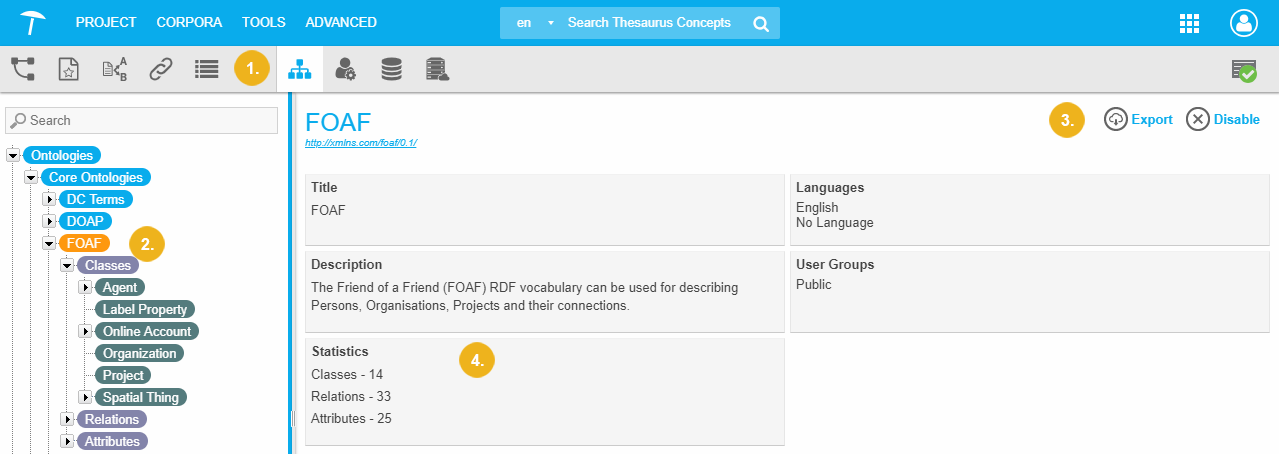

Details View of a Core Ontology

  1. Open the Ontology Management by clicking its icon in the toolbar.

  2. Find the Core Ontologies node inside the Ontologies node. Expand it and click on one ontology's node to activate it.

    • You can expand each ontology's node to display the classes, relations and attributes that are part of it.

  3. In the Details View on the right, you see the following buttons:

    • Export

      Allows to export the ontology.

    • Disable

      Allows to disable the ontology and that way remove it from this PoolParty server.

    • In the Statistics section (4) you see the numbers of classes, relations and attributes that are part of this ontology.

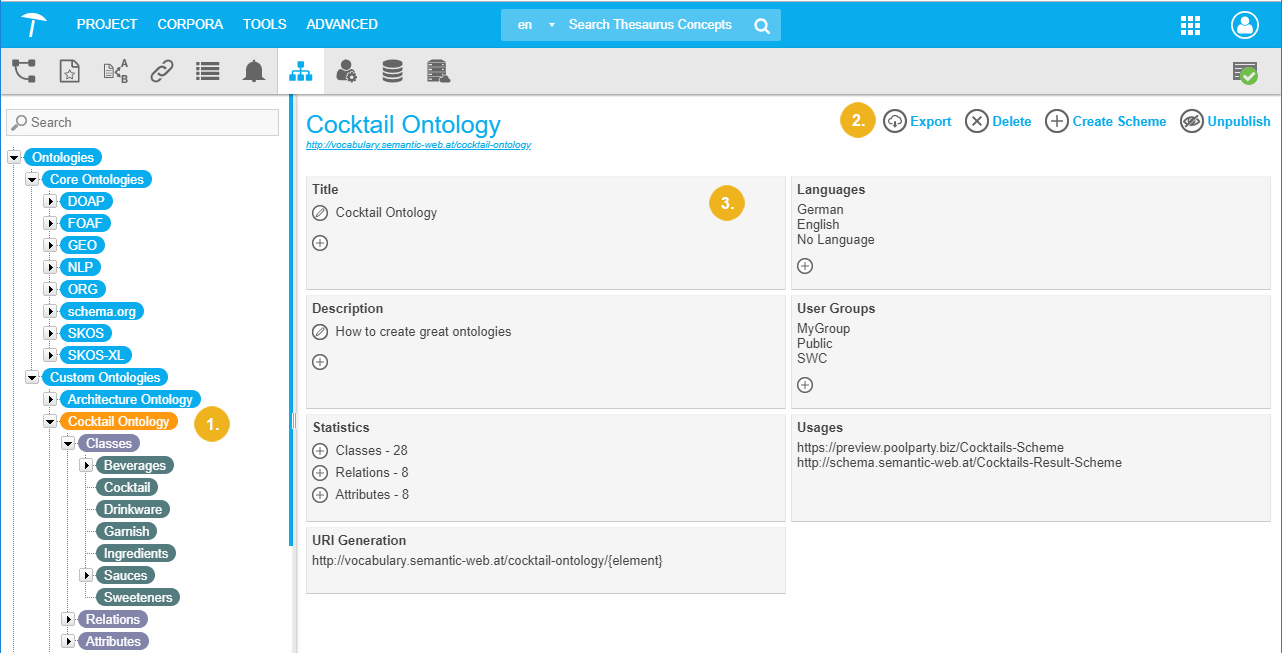

Details View of a Custom Ontology

  1. Open the Ontology Management by clicking its icon in the toolbar.

  2. Find the Custom Ontologies node inside the Ontologies node. Expand it and click on one ontology's node to activate it.

    • As is the case with all ontologies and custom schemes in PoolParty, you can expand their node to display and access their classes, relations and attributes.

  3. In the Details View on the right, you see the following buttons:


Ontology Details View - Classes, Relations and Attributes Node

This section contains a short guide on how to use the ontology details view of the Classes, Relations and Attributes node.

You can access the Details View of the Classes, Relations and Attributes node using the Ontology Management.

The Details View for Core Ontologies and Custom Ontologies is basically the same. Except that core ontologies cannot be modified or extended.

  1. Open the Ontology Management by clicking its icon in the toolbar.

  2. Find the Core Ontologies or Custom Ontologies node inside the Ontologies node. Expand it to display all ontology nodes.

  3. Expand the respective ontology node you want to see in more detail.

  4. Select the Classes, Relations or Attributes node.

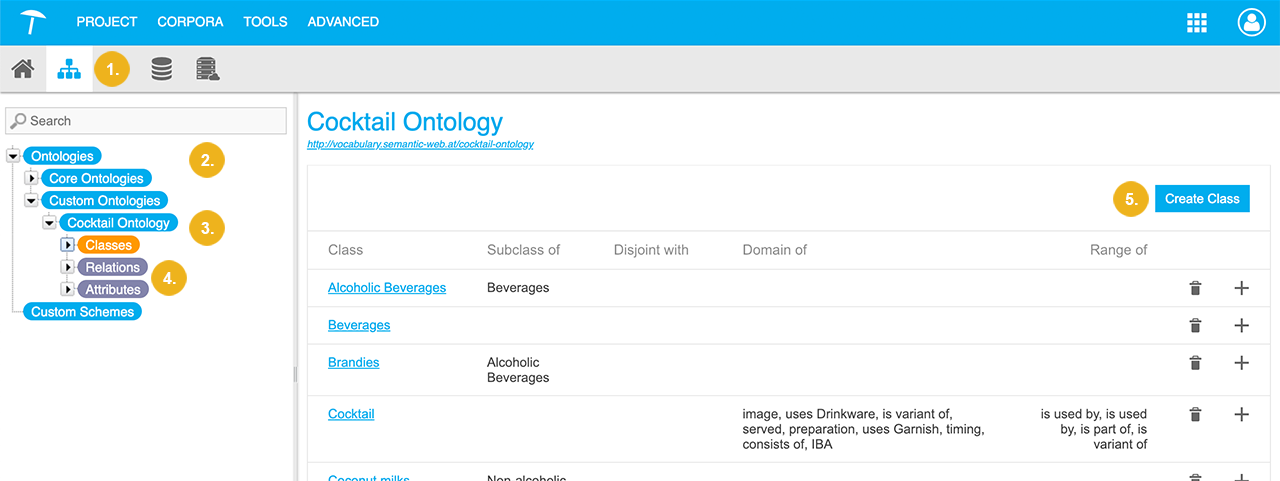

  5. In the Details View on the right, you see one of the following buttons, depending on the node you selected:

    • Create Class (Create Relation or Create Attribute)

      Allows you to create a new class, relation or attribute. This option is only available for custom ontologies.

    • The table lists all classes, relations and attributes with their respective definition. You can sort the table by each column header.

    • At the right of the table you have the following options:


Ontology Details View - Individual Classes Node

This section contains a short guide on how to use the Details View of an individual Classes node.

You can access the Details View of the an individual Classes node using the Ontology Management.

The Details View for Core Ontologies and Custom Ontologies is basically the same. Except that you cannot edit Title and Description of core ontologies.

  1. Open the Ontology Management by clicking its icon in the toolbar.

  2. Find the Core Ontologies or Custom Ontologies node inside the Ontologies node. Expand it to display all ontology nodes.

  3. Expand the respective Ontology node you want to see in more detail.

  4. Expand the Classes node to see the Classes tree. Sub-class relations are displayed as a Hierarchy Tree of classes below the Classes node.

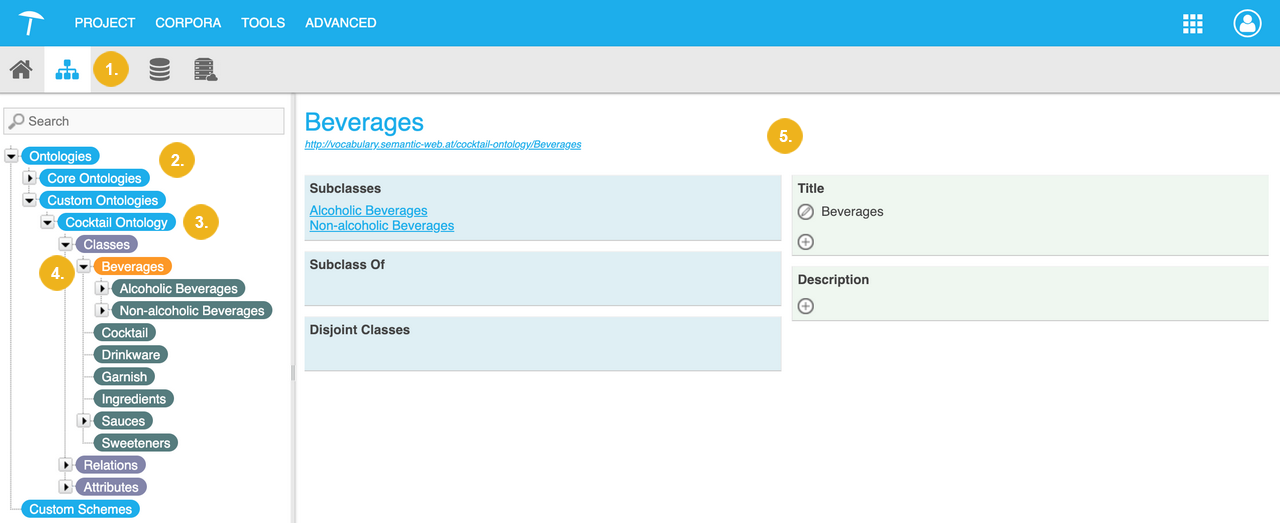

  5. Select the individual node of a class in the tree you want to see, for example 'Beverages'. In the Details View on the right you see the following information:

    • The blue sections on the left display the Subclasses, and Disjoint Classes defined for this class. In addition you see if the class itself is Subclass Of another class.

    • The green sections on the right display the Title and Description of the class in all defined languages. For custom ontologies you can change and add Titles and Descriptions.


Ontology Details View - Individual Relations Node

This section contains a short guide on how to use the Details View of an individual Relations node.

You can access the Details View of the an individual class node using the Ontology Management.

The Details View for Core Ontologies and Custom Ontologies is basically the same. Except that you cannot edit Title and Description of core ontologies.

  1. Open the Ontology Management by clicking its icon in the toolbar.

  2. Find the Core Ontologies or Custom Ontologies node inside the Ontologies node. Expand it to display all ontology nodes.

  3. Expand the respective Ontology node you want to see in more detail.

  4. Expand the Relations node to see the relations tree. Sub-property relations are displayed as a hierarchy tree of relations below the Relations node.

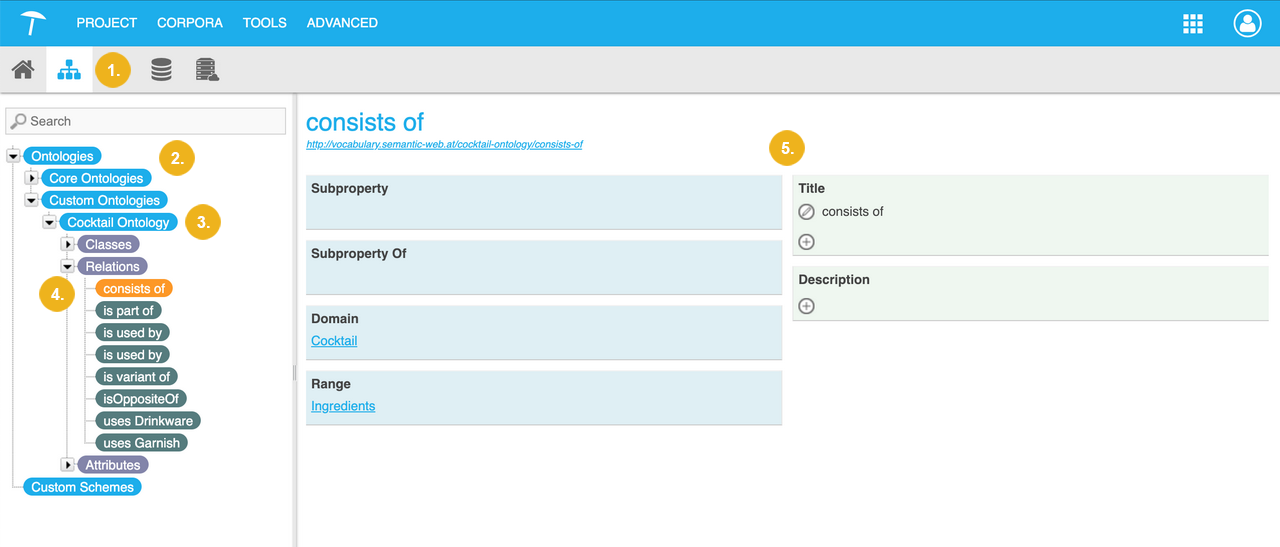

  5. Select the individual Relations node in the tree you want to see, for example 'consists of'. In the Details View you see the following information:

    • The blue sections on the left display the Subpropertie s defined for this class. In addition you see if the class is Subproperty Of another relation. You also see the Domain and Range definitions for this relation.

    • The green sections on the right display the Title and Description of the relation in all defined languages. For custom ontologies you can change and add Titles and Descriptions.


Ontology Details View - Individual Attributes Node

This section contains a short guide on how to use the Details View of an individual Attributes node.

You can access the Details View of the an individual Attributes node using the Ontology Management.

The Details View for Core Ontologies and Custom Ontologies is basically the same. Except that you cannot edit Title and Description of core ontologies.

  1. Open the Ontology Management by clicking its icon in the toolbar.

  2. Find the Core Ontologies or Custom Ontologies node inside the Ontologies node. Expand it to display all ontology nodes.

  3. Expand the respective Ontology node you want to see in more details

  4. Expand the Attributes node to see the Attributes tree. Subproperty relations are displayed as a Hierarchy Tree of attributes below the Attributes node.

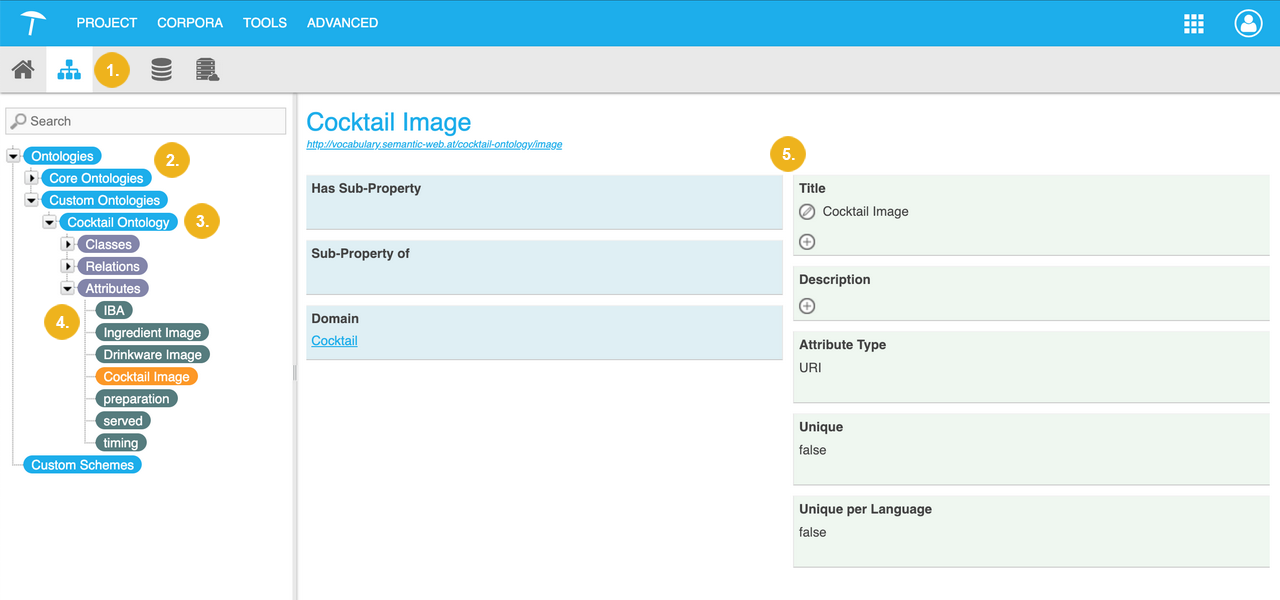

  5. Select the individual attribute node in the tree you want to see, for example 'Cocktail Image'. In the Details View you see the following information:

    • The blue sections on the left display the Subproperties defined for this class. In addition you see if the class is Subproperty Of another class. In addition you can see the Domain definitions for this attribute.

    • The green sections on the right display the Title and Description of the attribute in all defined languages. For custom ontologies you can change and add Titles and Descriptions.

    • In addition the Attribute Type and the information, if the attribute is Unique or Unique per Language, is displayed.
