Loader DPUs

Loader DPUs are integration points with the external data sources similarly to Extractor DPUs.

In contrast to the extractors though, loaders only accept input from other DPUs and have no output. They load the received data to the external data sources based on the configuration. This is usually the last step of a data processing pipeline, where new data is produced and published to other users for further consumption.

PoolParty UnifiedViews provides DPUs to load data to file systems, HTTP API endpoints, SQL and SPARQL endpoints, and more.

Please refer to the respective topics for detailed descriptions:

DPU Documentation Template

Description*

<Explain the functionalities of the DPU>

Configuration Parameters*

<List of the configurable parameters in DPU configuration panel>

Name

Description

Example

Inputs and Outputs*

<List of the DPU input / output channels>

Name

Type

Data Unit

Description

Mandatory

Notes

<Explain any important concept or parameter specific to this DPU>

Note 1Note 2Examples*

<Provide examples and screenshots of pipeline and DPU configuration to cover the features of the DPU as much as possible>

Example 1Example 2

* symbol is a notation for mandatory fields. Please remove it before publishing

RDF Loader

DescriptionRDF Loader (uv-t-rdfHttpLoader):

RDF HTTP Loader executes update queries in and load the input RDF data to a remote SPARQL endpoint via HTTP based on SPARQL 1.1 Update Protocoland SPARQL 1.1 Graph Store HTTP Protocol. It is compatible with any SPARQL endpoint supporting the aforementioned protocols.

Configuration Parameters

Name

Description

Example

Host

Resolvable host name or IP address of the target remote SPARQL endpoint (excluding protocol prefix such as "http://")

test.poolparty.biz

Port

Port number of the SPARQL endpoint

8080

SPARQL Endpoint

The context path of the SPARQL endpoint relative to base URL

/sparql

Basic Authentication

HTTP Basic Authentication for the SPARQL endpoint

true

Username

Account name of the user granted access to the SPARQL endpoint

dba

Password

Password of the user

***

Input Data Type

Type of input data for this DPU, see the following chapters for more information

RDF | File | SPARQL Update

RDF File Format

Serialization format of the RDF data when input as file

Turtle

Specify Target Graph

Enable the input to specify the loading destination of RDF data

true

Graph URI

URI of the target RDF graph

http://example.org

Overwrite Existing Data

Decide if new data overwrites or appends to existing data

true

SPARQL Update

SPARQL Update query to be executed on the SPARQL endpoint

DELETE WHERE {?s ?p ?o}

Validate Update Query

Verify if the syntax of SPARQL update query is correct

true

Inputs and Outputs

Name

Type

Data Unit

Description

Mandatory

rdfInput

input

RDFDataUnit

RDF data in RDF objects or RDF data structure

(error)

fileInput

input

FilesDataUnit

RDF data serialized to a standard RDF serialization file format

(error)
NotesInput Data Type

RDF HTTP Loader deals with three types of input data:

  • RDF: selected when RDF data comes from rdfInput wrapped in RDFDataUnit as Java Objects. In such case the input data is serialized into N-Triples, inserted into the body of a SPARQL Update query, and loaded to the target SPARQL endpoint through update query. This approach can be used for small datasets if N-Triples serialization is less than 10 MB.

  • File: selected when RDF data comes from fileInput wrapped in FilesDataUnit as files based on any standard RDF serialization format. In this case the input data is uploaded to the SPARQL endpoint as files in post body. In the meanwhile RDF File Format must be specified properly to set the appropriate content type header in the request. This approach is recommended for large datasets. Note that the SPARQL endpoint for file uploading of nearly every RDF database is different. So it is necessary to adjust the path of SPARQL endpoint accordingly.

  • SPARQL Update: selected when input data is provided manually in the update query instead of the connected DPU or any update and management task needs to be executed on the SPARQL endpoint. Based on the selection of input data type, the corresponding input data source is used to retrieve data. An error will be thrown when the input data type and input data source do not match.

SPARQL Endpoint

The service path of SPARQL endpoint differs according to the RDF database. The following table summarizes the paths for common RDF databases.

Database

Path Variable

Service Path for SPARQL Update

Service Path for SPARQL Graph Store HTTP Protocol

RDF4J

$REPOSITORY: RDF4J repository name

/$REPOSITORY/statements

/$REPOSITORY_ID/rdf-graphs/service

Stardog

$DATABASE: Stardog database name

/$DATABASE/update

/$DATABASE

MarkLogic

None. "repository" is decided by port number

/v1/graphs/sparql

/v1/graphs

Allegrograph

$REPOSITORY: RDF4J repository name

/repositories/$REPOSITORY

Not supported

GraphDB

$REPOSITORY: GraphDB repository name

/$REPOSITORY/statements

/$REPOSITORY_ID/rdf-graphs/service

Graph URI

URI of the target RDF graph on the SPARQL endpoint can be specified to describe the destination of the RDF data to be loaded into. The default graph is used if no graph URI is specified by the user. In the case that input data type is a SPARQL update query, this option is disabled because graph operations should be specified in the update query.

Overwrite Existing Data

When files are used as input to be loaded to the remote SPARQL endpoint, one can specify if the new data is inserted into the existing target graph directly or after clearing the target graph. This operation is defined in SPARQL Graph Store HTTP Protocol by using HTTP operation POST or PUT. For SPARQL endpoints not conforming to this protocol strictly, inserting data to a non-existing target graph with overwritten option by HTTP PUT may do nothing.

ExamplesWrite RDF Data Produced by another DPU to an RDF4J Server

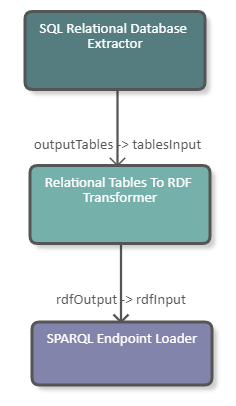

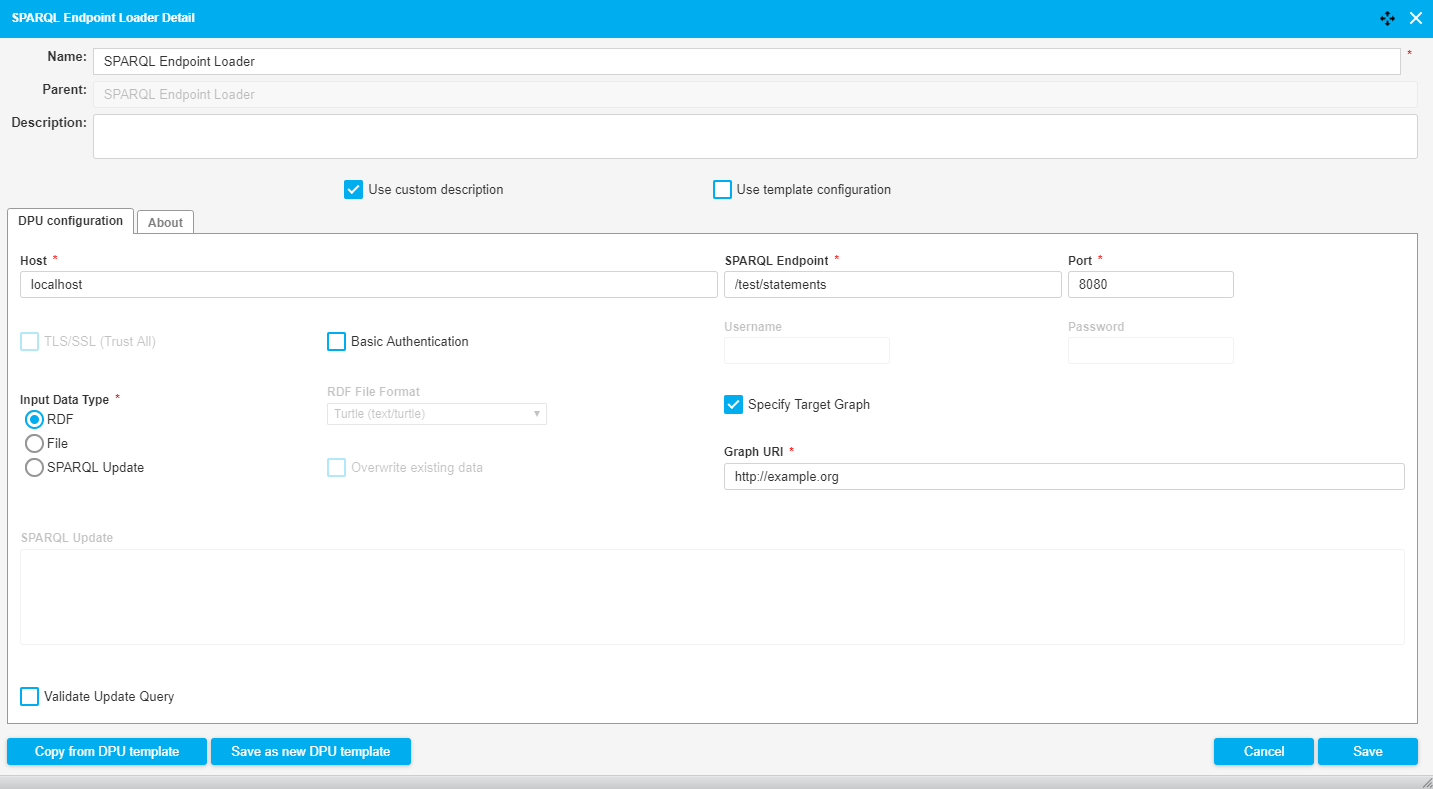

The following image shows a fragment of a pipeline which retrieves data from a SQL database, transforms relational data to RDF data, and loads RDF data to a remote SPARQL endpoint. The DPU receives RDF data from its "rdfInput" channel so the "Input Data Type" is set to "RDF". The target is an RDF4J repository named "test", so the correct path for the SPARQL update endpoint is "/test/statements". Data is loaded to a named graph with URI <http://example.org>. The DPU configuration is also illustrated in the image.

Write a Downloaded RDF file to an RDF4J Server

The following image shows a fragment of a pipeline which downloads an RDF Turtle file from file system and loads it to a remote SPARQL endpoint. The DPU receives file data from its "fileInput" channel so the "Input Data Type" is set to "File". "RDF File Format" is set to "Turtle" because of the format of the input file. The target is an RDF4J repository named "test", so the correct path for the SPARQL Graph Store HTTP endpoint is "/test/rdf-graphs/service". File is loaded to a named graph with URI <http://example.org> without removing existing data. The DPU configuration is also illustrated in the image.

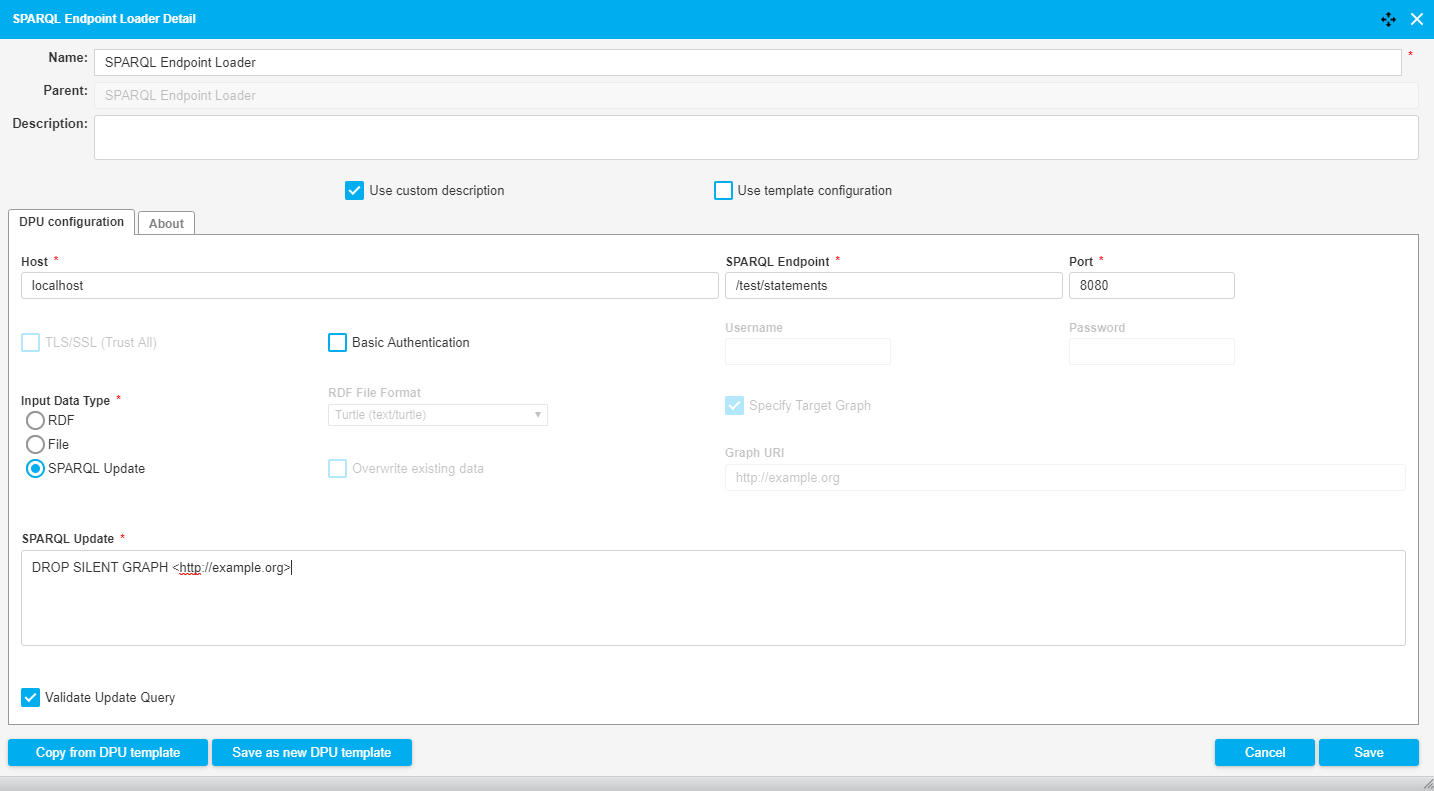

Delete an Existing Graph from an RDF4J Server

The following image shows a fragment of a pipeline which runs a SPARQL update query in a SPARQL endpoint. The DPU does not need any input since the update query is provided in the DPU configuration. The "Input Data Type" is set to "SPARQL Update". "SPARQL Endpoint" is same as accepting RDF data. "SPARQL Update" is a query to drop a graph from the SPARQL endpoint with the query validated for syntax correctness. The DPU configuration is also illustrated in the image.
