Upgrade PoolParty - Version 6.0 and higher

This section contains the upgrade information for Linux and Windows systems you should follow to upgrade a PoolParty as of version 6 or higher.

Caution

We strongly recommend to completely back up your installation before you try to perform an upgrade. Be advised that the users of PoolParty need to refresh their browser's cache after an upgrade. Failure to do that might result in unexpected behavior when using PoolParty (this is a common phenomenon for applications using Ajax technology). Please refer the users to the Troubleshooting in the user manual for instructions on how to clear cache of their browser.

Supported Upgrade Paths

Abstract

This section provides an upgrade reference table for the most recent PoolParty versions.

If the version you are upgrading to is a part of a different major release than the version you are upgrading from, you need to incrementally execute the upgrades and include each major version. Always upgrade to the latest minor release of that version.

For example, if you want to upgrade PoolParty 7.2.3 to PoolParty 9.1.1, do the following:

upgrade from PoolParty 7.2.3 to PoolParty 8.0.3 (latest minor release of PoolParty 8.0.x)
upgrade from PoolParty 8.0.3 to PoolParty 8.1.9 (latest minor release of PoolParty 8.1.x)
upgrade from PoolParty 8.1.9 to PoolParty 9.0.7 (latest minor release of PoolParty 9.0.x)
upgrade from PoolParty 9.0.7 to PoolParty 9.1.1

Note

Don't forget to migrate your data after each upgrade. For more information, refer to PoolParty Data Migration.

Upgrades skipping minor releases of the same major version are supported. For example, you can upgrade from PoolParty 9.0.0 directly to PoolParty 9.0.6 without the need to upgrade to PoolParty 9.0.1, 9.0.2 and 9.0.5 first.

Version you are upgrading to	Version you can directly upgrade from
9.3.x (PoolParty 2024 R1)	9.3.x (PoolParty 2024 R1) 9.2.x (PoolParty 2022 R3)
9.2.x (PoolParty 2022 R3)	9.2.x (PoolParty 2022 R3) 9.1.x (PoolParty 2022 R2)
9.1.x (PoolParty 2022 R2)	9.1.x (PoolParty 2022 R2) 9.0.x (PoolParty 2022 R1)
9.0.x (PoolParty 2022 R1)	9.0.x (PoolParty 2022 R1) 8.1.x
8.1.x	8.1.x 8.0.x
8.0.x	8.0.x 7.2.x
7.2.x	7.2.x 7.1.x
7.1.x	7.1.x 7.0.x
7.0.x	7.0.x 6.2.x

Upgrade PoolParty 9.2.x to PoolParty 9.3.1 on Linux

Introduction

To upgrade your PoolParty installation, follow the steps described below. PoolParty's automated upgrade process for GNU/Linux hosts makes this process a breeze.

Warning

We strongly recommend to make a full backup of your existing installation before upgrading PoolParty.

Tip

It is recommended to run the upgrade process as a root user to ensure smooth installation.

Note

PoolParty users need to refresh their browser's cache after an upgrade. Failure to do so may result in unexpected behavior when using PoolParty (this is a common phenomenon for applications using Ajax technology). Please refer the users to the Troubleshooting in the user manual for instructions on how to clear browser cache.

Note

These instructions assume you are upgrading a default GNU/Linux installation with PoolParty installed at /opt/poolparty, unless otherwise stated.

PoolParty requires OpenJDK 17 to run.

Important

PoolParty 9.3.1 installation includes Keycloak version 22.0.5.

Upgrade Process

Note

On upgrade we replace SesameSetup.xml file in the config folder. Backup of the original file is made and then stored as /opt/poolparty/config/SesameSetup.old.

Note

All the subsequent steps are carried out using a terminal window.

STEP 1: Stop the PoolParty Server

In order to upgrade you need to stop the PoolParty server.

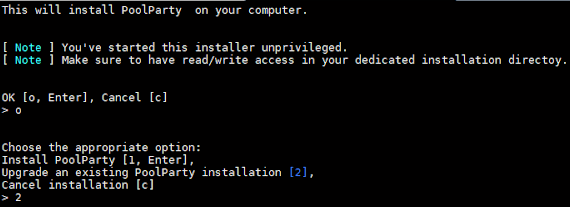

STEP 2: Run the Installer PoolParty.run from a Terminal Window

If the package is not yet executable you can make it executable by running

chmod +x /path/to/PoolParty.run

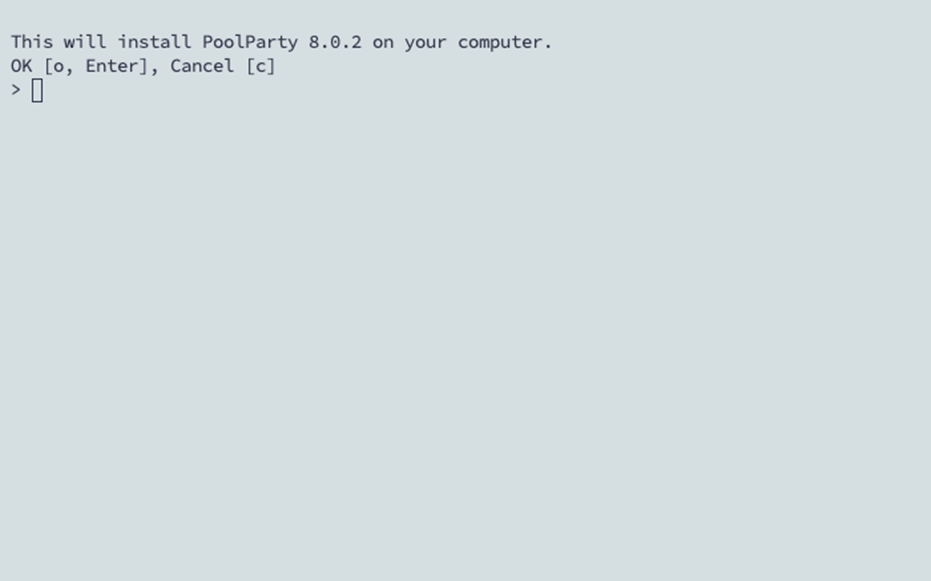

Now you can run the installer via

./path/to/PoolParty.run

STEP 3: Confirm the PoolParty Application Directory (PPAppDir) and the Location for the PoolParty Data Directory (PPDataDir)

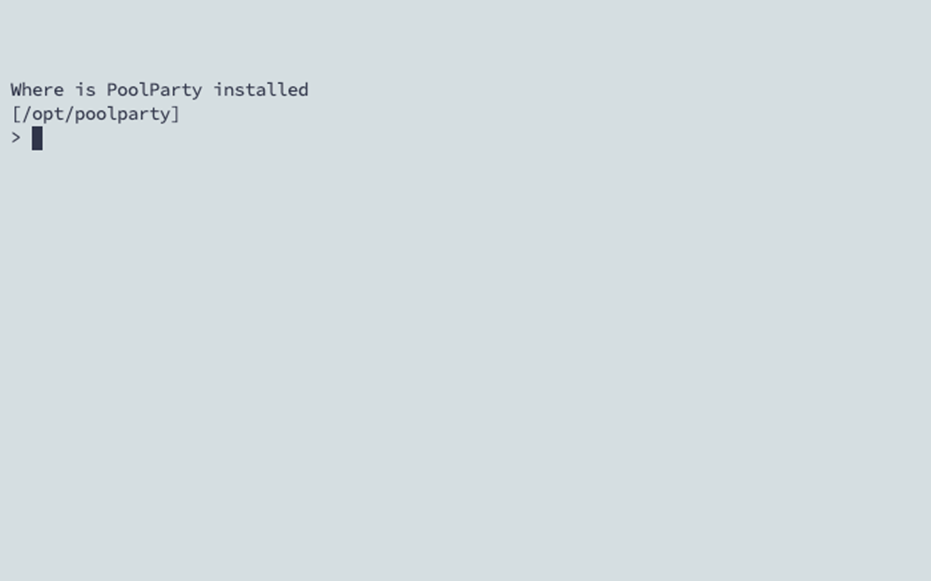

Provide the path for your PoolParty application directory (default: /opt/poolparty). Enter the path of your installation if different than /opt/poolparty and press Enter or just press Enter to use the default path.

If the data directory is found in the PPAppDir, the upgrade just skips the next step. If your installation has a separate path for the data directory enter the path and hit Enter.

The following settings and values are displayed in the terminal window:

SETTING VALUE

Installation directory /opt/poolparty, Access: OK

Data directory /opt/poolparty/data, Access: OK

PoolParty user:group poolparty:poolparty

Upgrade from 9.2.1 to 9.3.1 OK

Caution

Before you upgrade, make sure that you have a working backup of your existing installation.

This installer can copy the existing PoolParty installation and its data folder to your home folder.

STEP 4: Start the actual Upgrade

Now you need to specify which upgrade mode you are going to use:

Proceed upgrade?

Backup PoolParty & upgrade [o, Enter], Upgrade only [u], Cancel [c]

In case you created a backup before as suggested, proceed with an upgrade only enter > u in the terminal window.

STEP 5: The following is displayed in the terminal window:

Setting up Elasticsearch

Elasticsearch Plugins installed

update graphdb license

Modified configuration files

FILE CHANGES

Index NEW, Binaries updated

Tomcat NEW, Binaries updated

Auth Service NEW, Auth service configured

Note

Elasticsearch was added to your PoolParty installation. PoolParty currently supports Elasticsearch 8.12. Elasticsearch credentials are part of the final output. Elasticsearch is installed to /opt/poolparty/index, but Elasticsearch is not automatically set up in PoolParty.

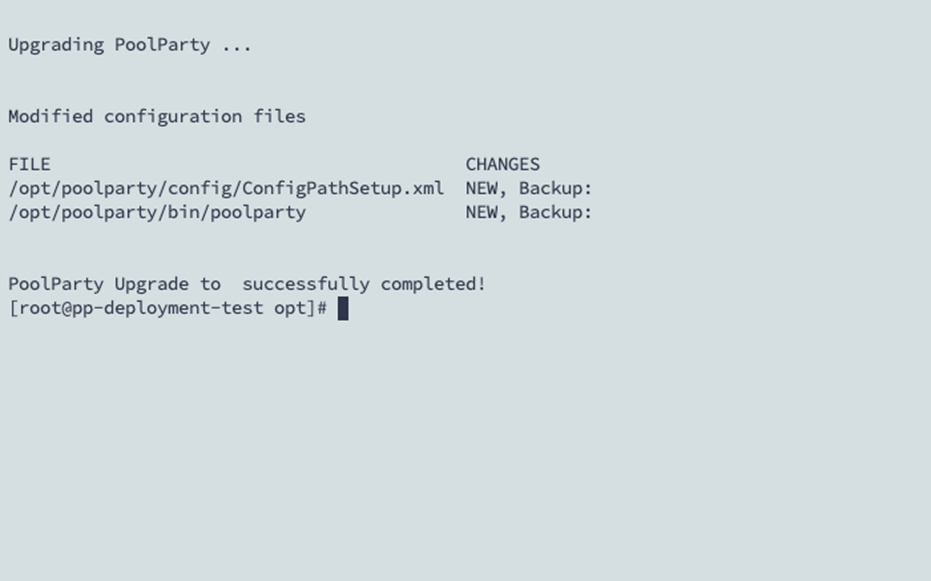

After completion of the upgrade the confirmation message appears on the terminal window:

PoolParty Upgrade to 9.3.0 successfully completed!

STEP 6: Start the PoolParty Server

Post-Upgrade Tasks

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and JavaScript used in the PoolParty UI have been done.

Run Post Update Scripts

After the upgrade you have to run the PoolParty migration script. To do so, log in to PoolParty after the upgrade and enter:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run those scripts.

Tip

For more information on how to secure the PoolParty's backend, refer to Provide Secure Backend for PPT (Linux).

For more information on how to migrate server and project data, refer to PoolParty Data Migration From Version 8 or Higher to Version 9.0.1 or Higher.

Upgrade PoolParty 9.2.x to PoolParty 9.3.1 on Microsoft Windows

Prerequisites

The following requirements have to be satisfied before you can upgrade your PoolParty installation running on a Microsoft Windows system:

you are running a 64-bit Windows Server 2016 or 2019
you have a valid PoolParty license for the version you want to upgrade to

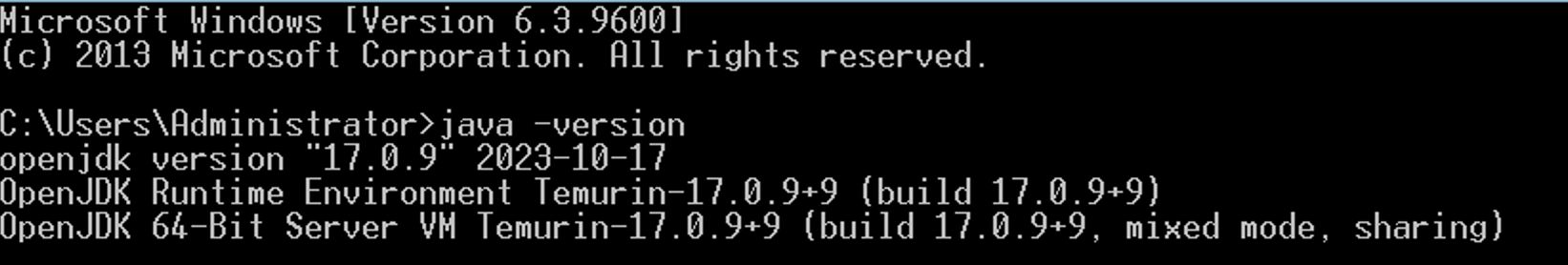

OpenJDK 17 installed
If you have no OpenJDK installed, then install OpenJDK 17 and correctly configure JAVA_HOME; To validate that your installation is successful, enter on the command line echo %JAVA_HOME% to display the Java version ( C:\jdk17 ), then enter java -version which then returns all the JDK version details.

the PoolParty installer (poolparty.zip) which can be downloaded from our download area
you already run a full backup of your existing PoolParty installation (both system and data)

Note

You will have to incrementally upgrade your installation including minor releases. For instance, if you are currently running an 8.0 PoolParty version on your system, you will have to upgrade to PoolParty 8.1, then to 9.0 (> 9.1 > 9.2) and then to 9.3.1.

Note

In this description we assume that you want to upgrade a PoolParty version installed in the default installation directory: C:\opt\poolparty. If your PoolParty is installed in a different directory you will have to correspondingly adjust the paths during the upgrade process.

PoolParty requires OpenJDK 17 to run. It is mandatory to set up ES_JAVA_HOME variable the same way as JAVA_HOME is set up.

Keycloak

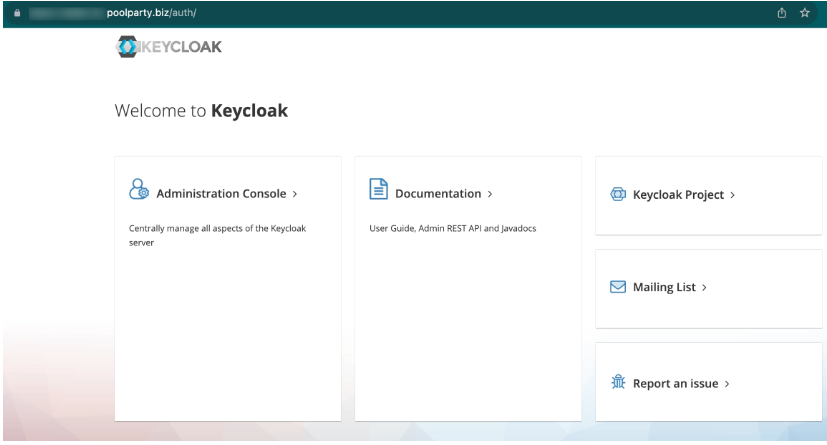

PoolParty comes with Keycloak as an authentication and authorization service. A relational database is recommended to run Keycloak. Keycloak comes with H2 as an embedded database.

Tip

PoolParty 9.3.1 installation includes Keycloak version 22.0.5.

Important

In accordance with the Keycloak documentation, we recommend using a proper database service instead of the default database Keycloak comes with. For more information on how to migrate to a proper database service, refer to the Keycloak documentation,

Upgrade

Tip

The subsequent steps require administrator rights. You can carry these either on the Command Prompt and/or using the SC management console.

To upgrade PoolParty for Windows, do the following:

Stop the Apache Tomcat, Keycloak and Solr services. To do so either call up the management console services.mcs or enter the following commands on the Command Prompt: sc stop keycloak, sc stop SolrPoolParty, sc stop pptomcat9.
Now set the Startup type of these services to Manual and reboot your Windows server to make sure that none of these services are running.

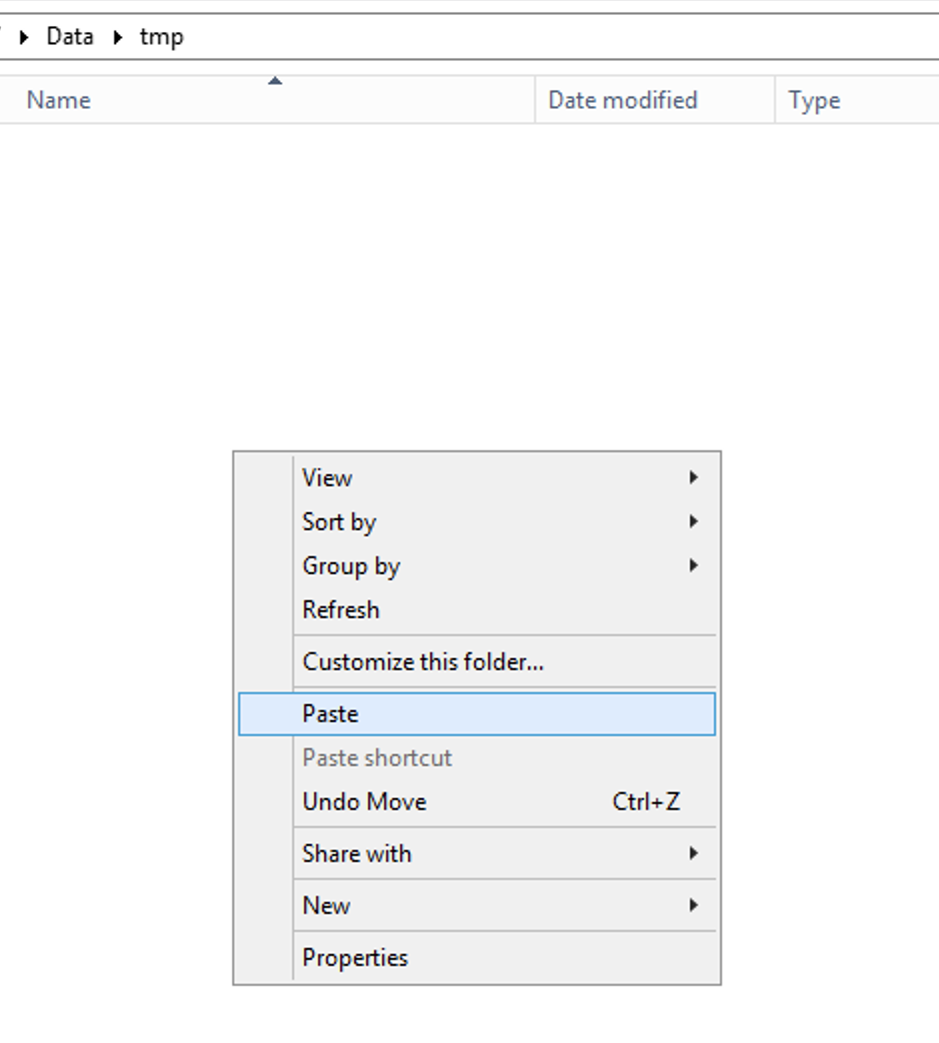

Create a temporary folder in your PoolParty folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)

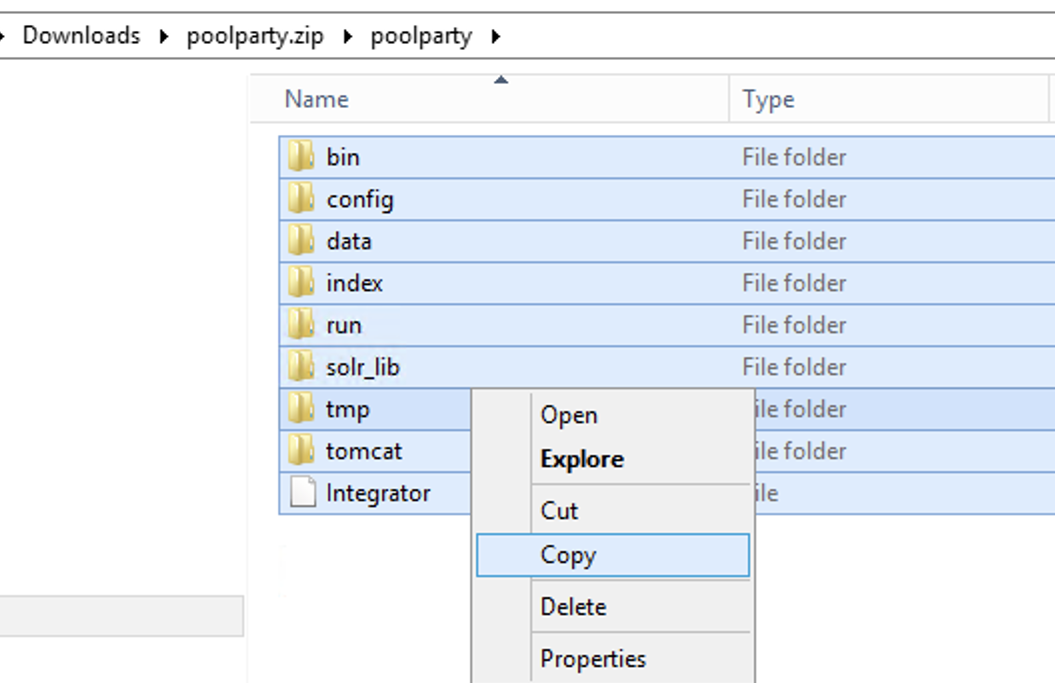

Extract the contents of the poolparty.zip archive to this temporary folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Open Command Prompt in the Run as administrator mode and navigate to the C:\opt\poolparty\tmp\bin directory (or <yourdrive>poolparty-installation\tmp\bin).

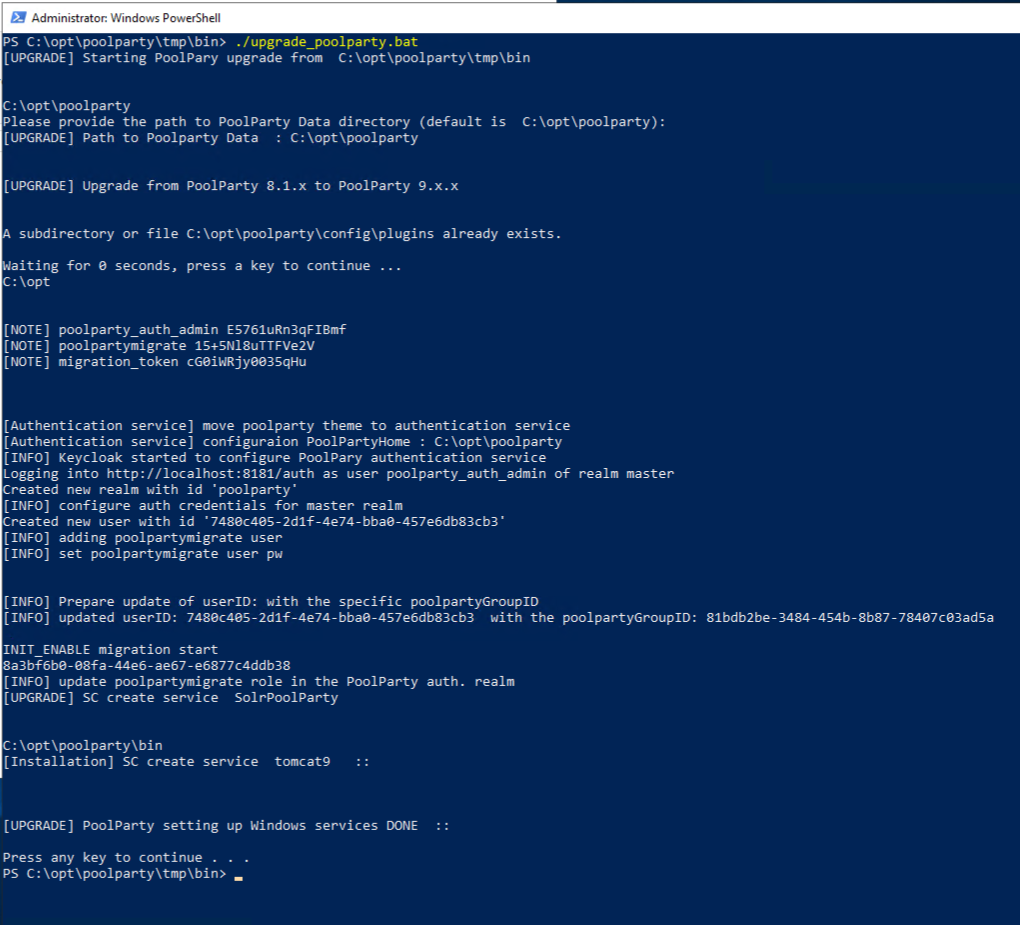

Run upgrade_poolparty.ps1 file.
Start services.
1. Open the management console services.msc and navigate to the PoolParty Services.
2. Start the PoolParty Tomcat, Solr and Keycloak services either using the management console or Command Prompt: sc start keycloak, sc start SolrPoolParty, sc start pptomcat9
3. Now set the Startup type of these services back to Automatic to make sure that they will be always restarted whenever the Windows server is rebooted.

Post-Upgrade TasksProvide GraphDB Licenses

If you want to use GraphDB add a valid grahpdb.oem.license file to the <PoolPartyHome>\config\licenses folder.

Clear browser cache

You have to clear your browser cache after the upgrade as changes to the CSS and other dynamic content used in the PoolParty UI have been done.

Run Post Update Scripts

Upgrade from version 8.1.x to 9.0 requires running a post-installation PoolParty migration script; this script is not required for upgrades from version 9.0 or higher.

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run those scripts.

For more information, refer to:

Upgrade PoolParty 9.2.0 to PoolParty 9.2.1 on Linux

Introduction

To upgrade your PoolParty installation, follow the steps described below. PoolParty's automated upgrade process for GNU/Linux hosts makes this process a breeze.

Warning

We strongly recommend to make a full backup of your existing installation before upgrading PoolParty.

Tip

It is recommended to run the upgrade process as a root user to ensure smooth installation.

Note

These instructions assume you are upgrading a default GNU/Linux installation with PoolParty installed at /opt/poolparty, unless otherwise stated.

PoolParty requires OpenJDK 17 to run.

Important

PoolParty 9.2.1 installation includes Keycloak version 22.0.5.

Upgrade Process

Note

On upgrade we replace SesameSetup.xml file in the config folder. Backup of the original file is made and then stored as /opt/poolparty/config/SesameSetup.old.

Note

All the subsequent steps are carried out using a terminal window.

STEP 1: Stop the PoolParty Server

In order to upgrade you need to stop the PoolParty server.

STEP 2: Run the Installer PoolParty.run from a Terminal Window

If the package is not yet executable you can make it executable by running

chmod +x /path/to/PoolParty.run

Now you can run the installer via

./path/to/PoolParty.run

STEP 3: Confirm the PoolParty Application Directory (PPAppDir) and the Location for the PoolParty Data Directory (PPDataDir)

If the data directory is found in the PPAppDir, the upgrade just skips the next step. If your installation has a separate path for the data directory enter the path and hit Enter.

The following settings and values are displayed in the terminal window:

SETTING VALUE

Installation directory /opt/poolparty, Access: OK

Data directory /opt/poolparty/data, Access: OK

PoolParty user:group poolparty:poolparty

Upgrade from 9.2.0 to 9.2.1-SNAPSHOT-CD OK

Caution

Before you upgrade, make sure that you have a working backup of your existing installation.

This installer can copy the existing PoolParty installation and its data folder to your home folder.

STEP 4: Start the actual Upgrade

Now you need to specify which upgrade mode you are going to use:

Proceed upgrade?

Backup PoolParty & upgrade [o, Enter], Upgrade only [u], Cancel [c]

In case you created a backup before as suggested, proceed with an upgrade only enter > u in the terminal window.

STEP 5: The following is displayed in the terminal window:

Setting up Elasticsearch

Elasticsearch Plugins installed

update graphdb license

Modified configuration files

FILE CHANGES

Index NEW, Binaries updated

Tomcat NEW, Binaries updated

Auth Service NEW, Auth service configured

Note

PoolParty 2022 R3 (9.2.1) now supports Java 17 runtime environment. Support for Java 11 has been discontinued after PoolParty 2022 R2.

After completion of the upgrade the confirmation message appears on the terminal window:

PoolParty Upgrade to 9.2.1-SNAPSHOT-CD successfully completed!

STEP 6: Start the PoolParty Server

Post-Upgrade Tasks

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and JavaScript used in the PoolParty UI have been done.

Run Post Update Scripts

After the upgrade you have to run the PoolParty migration script. To do so, log in to PoolParty after the upgrade and enter:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run those scripts.

Tip

For more information on how to secure the PoolParty's backend, refer to Provide Secure Backend for PPT (Linux).

For more information on how to migrate server and project data, refer to PoolParty Data Migration From Version 8 or Higher to Version 9.0.1 or Higher.

Upgrade PoolParty 9.2.0 to PoolParty 9.2.1 on Microsoft Windows

Prerequisites

The following requirements have to be satisfied before you can upgrade your PoolParty installation running on a Microsoft Windows system:

you are running a 64-bit Windows Server 2016 or 2019
you have a valid PoolParty license for the version you want to upgrade to
OpenJDK 17 installed
If you have no OpenJDK installed, then install OpenJDK 17 and correctly configure JAVA_HOME; To validate that your installation is successful, enter on the command line echo %JAVA_HOME% to display the Java version ( C:\jdk17 ), then enter %JAVA_HOME%\bin\java -version which then returns all the JDK version details.

the PoolParty installer (poolparty.zip) which can be downloaded from our download area
you already run a full backup of your existing PoolParty installation (both system and data)

Note

PoolParty requires OpenJDK 17 to run.

Keycloak

PoolParty comes with Keycloak as an authentication and authorization service. A relational database is recommended to run Keycloak. Keycloak comes with H2 as an embedded database.

Tip

PoolParty 9.2.1 installation includes Keycloak version 22.0.5.

Important

Upgrade

Tip

The subsequent steps require administrator rights. You can carry these either on the Command Prompt and/or using the SC management console.

To upgrade PoolParty for Windows, do the following:

Stop the Apache Tomcat, Keycloak and Solr services. To do so either call up the management console services.mcs or enter the following commands on the Command Prompt: sc stop keycloak, sc stop SolrPoolParty, sc stop pptomcat9.
Now set the Startup type of these services to Manual and reboot your Windows server to make sure that none of these services are running.
Create a temporary folder in your PoolParty folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Extract the contents of the poolparty.zip archive to this temporary folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Open Command Prompt in the Run as administrator mode and navigate to the C:\opt\poolparty\tmp\bin directory (or <yourdrive>poolparty-installation\tmp\bin).
Run upgrade_poolparty.ps1 file.
Start services.
1. Open the management console services.msc and navigate to the PoolParty Services.
2. Start the PoolParty Tomcat, Solr and Keycloak services either using the management console or Command Prompt: sc start keycloak, sc start SolrPoolParty, sc start pptomcat9
3. Now set the Startup type of these services back to Automatic to make sure that they will be always restarted whenever the Windows server is rebooted.

Post-Upgrade TasksProvide GraphDB Licenses

If you want to use GraphDB add a valid grahpdb.oem.license file to the <PoolPartyHome>\config\licenses folder.

Clear browser cache

You have to clear your browser cache after the upgrade as changes to the CSS and other dynamic content used in the PoolParty UI have been done.

Run Post Update Scripts

Upgrade from version 8.1.x to 9.0 requires running a post-installation PoolParty migration script; this script is not required for upgrades from version 9.0 or higher.

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run those scripts.

For more information, refer to:

Upgrade PoolParty 9.1 to PoolParty 9.2 on Linux

Introduction

To upgrade your PoolParty installation, follow the steps described below. PoolParty's automated upgrade process for GNU/Linux hosts makes this process a breeze.

Warning

We strongly recommend to make a full backup of your existing installation before upgrading PoolParty.

Tip

It is recommended to run the upgrade process as a root user to ensure smooth installation.

Note

PoolParty users need to refresh their browser's cache after an upgrade. Failure to do so may result in unexpected behavior when using PoolParty (this is a common phenomenon for applications using Ajax technology). Please refer the users to the Troubleshootingin the user manual for instructions on how to clear browser cache.

Note

PoolParty requires OpenJDK 17 to run. After PoolParty 2023 R2 support for Java 11 has been discontinued.

Note

These instructions assume you are upgrading a default GNU/Linux installation with PoolParty installed at /opt/poolparty, unless otherwise stated.

Important

PoolParty 9.2 installation includes Keycloak version 22.0.5.

Upgrade Process

Note

On upgrade we replace SesameSetup.xml file in the config folder. Backup of the original file is made and then stored as /opt/poolparty/config/SesameSetup.old.

Note

All the subsequent steps are carried out using a terminal window.

STEP 1: Stop the PoolParty Server

In order to upgrade you need to stop the PoolParty server.

STEP 2: Run the Installer PoolParty.run from a Terminal Window

If the package is not yet executable you can make it executable by running

chmod +x /path/to/PoolParty.run

Now you can run the installer via

./path/to/PoolParty.run

STEP 3: Confirm the PoolParty Application Directory (PPAppDir) and the Location for the PoolParty Data Directory (PPDataDir)

If the data directory is found in the PPAppDir, the upgrade just skips the next step. If your installation has a separate path for the data directory enter the path and hit Enter.

The following settings and values are displayed in the terminal window:

SETTING VALUE

Installation directory /opt/poolparty, Access: OK

Data directory /opt/poolparty/data, Access: OK

PoolParty user:group poolparty:poolparty

Upgrade from 9.1.x to 9.2.0 OK

Caution

Before you upgrade, make sure that you have a working backup of your existing installation.

This installer can copy the existing PoolParty installation and its data folder to your home folder.

STEP 4: Start the actual Upgrade

Now you need to specify which upgrade mode you are going to use:

Proceed upgrade?

Backup PoolParty & upgrade [o, Enter], Upgrade only [u], Cancel [c]

In case you created a backup before as suggested, proceed with an upgrade only enter > u in the terminal window.

STEP 5: The following is displayed in the terminal window:

Setting up Elasticsearch

Elasticsearch Plugins installed

update graphdb license

Modified configuration files

FILE CHANGES

Index NEW, Binaries updated

Tomcat NEW, Binaries updated

Auth Service NEW, Auth service configured

Note

After completion of the upgrade the confirmation message appears on the terminal window:

PoolParty Upgrade to 9.2.0 successfully completed!

STEP 6: Start the PoolParty Server

Post-Upgrade Tasks

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and JavaScript used in the PoolParty UI have been done.

Run Post Update Scripts

After the upgrade you have to run the PoolParty migration script. To do so, log in to PoolParty after the upgrade and enter:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run those scripts.

Tip

For more information on how to secure the PoolParty's backend, refer to Provide Secure Backend for PPT (Linux).

For more information on how to migrate server and project data, refer to PoolParty Data Migration From Version 8 or Higher to Version 9.0.1 or Higher.

Upgrade PoolParty 9.1 to PoolParty 9.2 on Microsoft Windows

Prerequisites

The following requirements have to be satisfied before you can upgrade your PoolParty installation running on a Microsoft Windows system:

you are running a 64-bit Windows Server 2016 or 2019
you have a valid PoolParty license for the version you want to upgrade to
OpenJDK 17 installed
If you have no OpenJDK installed, then install OpenJDK 17 and correctly configure JAVA_HOME; To validate that your installation is successful, enter on the command line echo %JAVA_HOME% to display the Java version (C:\jdk17 ), then enter %JAVA_HOME%\bin\java -version which then returns all the JDK version details.

the PoolParty installer (poolparty.zip) which can be downloaded from our download area
you already run a full backup of your existing PoolParty installation (both system and data)

Note

Keycloak

PoolParty comes with Keycloak as an authentication and authorization service. A relational database is recommended to run Keycloak. Keycloak comes with H2 as an embedded database.

Tip

PoolParty 9.2 installation includes Keycloak version 22.0.5.

Important

Upgrade

Tip

The subsequent steps require administrator rights. You can carry these either on the Command Prompt and/or using the SC management console.

To upgrade PoolParty for Windows, do the following:

Stop the Apache Tomcat, Keycloak and Solr services. To do so either call up the management console services.mcs or enter the following commands on the Command Prompt: sc stop keycloak, sc stop SolrPoolParty, sc stop pptomcat9.
Now set the Startup type of these services to Manual and reboot your Windows server to make sure that none of these services are running.
Create a temporary folder in your PoolParty folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Extract the contents of the poolparty.zip archive to this temporary folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Open Command Prompt in the Run as administrator mode and navigate to the C:\opt\poolparty\tmp\bin directory (or <yourdrive>poolparty-installation\tmp\bin).
Run upgrade_poolparty.bat file.
Start services.
1. Open the management console services.msc and navigate to the PoolParty Services.
2. Start the PoolParty Tomcat, Solr and Keycloak services either using the management console or Command Prompt: sc start keycloak, sc start SolrPoolParty, sc start pptomcat9
3. Now set the Startup type of these services back to Automatic to make sure that they will be always restarted whenever the Windows server is rebooted.

Post-Upgrade TasksProvide GraphDB Licenses

If you want to use GraphDB add a valid grahpdb.oem.license file to the <PoolPartyHome>\config\licenses folder.

Clear browser cache

You have to clear your browser cache after the upgrade as changes to the CSS and other dynamic content used in the PoolParty UI have been done.

Run Post Update Scripts

Upgrade from version 8.1.x to 9.0 requires running a post-installation PoolParty migration script; this script is not required for upgrades from version 9.0 or higher.

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run those scripts.

For more information, refer to:

Upgrade PoolParty 9.0 to PoolParty 9.1 on Linux

Introduction

To upgrade your PoolParty installation, follow the steps described below. PoolParty's automated upgrade process for GNU/Linux hosts makes this process a breeze.

Warning

We strongly recommend to make a full backup of your existing installation before upgrading PoolParty.

Tip

It is recommended to run the upgrade process as a root user to ensure smooth installation.

Note

PoolParty users need to refresh their browser's cache after an upgrade. Failure to do so may result in unexpected behavior when using PoolParty (this is a common phenomenon for applications using Ajax technology). Please refer the users to the Troubleshootingin the user manual for instructions on how to clear browser cache.

Note

PoolParty requires OpenJDK 11 respectively 17 to run. After PoolParty 2023 R2 support for Java 11 will be discontinued.

Note

These instructions assume you are upgrading a default GNU/Linux installation with PoolParty installed at /opt/poolparty, unless otherwise stated.

Important

PoolParty 9.1 installation includes Keycloak version 21.1.2.

Upgrade Process

Note

On upgrade we replace SesameSetup.xml file in the config folder. Backup of the original file is made and then stored as /opt/poolparty/config/SesameSetup.old.

STEP 1: Stop the PoolParty Server

In order to upgrade you need to stop the PoolParty server.

STEP 2: Run the Installer PoolParty.run from a Terminal Window

If the package is not yet executable you can make it executable by running

chmod +x /path/to/PoolParty.run

Now you can run the installer via

./path/to/PoolParty.run

STEP 3: Confirm the PoolParty Application Directory (PPAppDir) and the Location for the PoolParty Data Directory (PPDataDir)

If the data directory is found in the PPAppDir, the upgrade just skips the next step. If your installation has a separate path for the data directory enter the path and hit Enter.

The following settings and values are displayed in the terminal window:

SETTING VALUE

Installation directory /opt/poolparty, Access: OK

Data directory /opt/poolparty/data, Access: OK

PoolParty user:group poolparty:poolparty

Upgrade from 9.0.6 to 9.1.0-SNAPSHOT-CD OK

Caution

Before you upgrade, make sure that you have a working backup of your existing installation.

This installer can copy the existing PoolParty installation and its data folder to your home folder.

STEP 4: Start the actual Upgrade

Now you need to specify which upgrade mode you are going to use:

Proceed upgrade?

Backup PoolParty & upgrade [o, Enter], Upgrade only [u], Cancel [c]

In case you created a backup before as suggested, proceed with an upgrade only enter > u in the terminal window.

STEP 5: The following is displayed in the terminal window:

Setting up Elasticsearch

Elasticsearch Plugins installed

update graphdb license

Modified configuration files

FILE CHANGES

Index NEW, Binaries updated

Tomcat NEW, Binaries updated

Auth Service NEW, Auth service configured

Note

Elasticsearch was added to your PoolParty installation. PoolParty currently supports Elasticsearch 7.17. Elasticsearch credentials are part of the final output. Elasticsearch is installed to /opt/poolparty/index, but Elasticsearch is not automatically set up in PoolParty. For more details on how to migrate the index from Solr to Elasticsearch go to the section Switching from Solr to Elasticsearch in PoolParty and Migrating Index from Solr to Elasticsearch on Linux.

Note

PoolParty 2022 R2 (9.1.0) now supports Java 17 runtime environment. Support for Java 11 will be discontinued after PoolParty 2023 R2.

After completion of the upgrade the confirmation message appears on the terminal window:

PoolParty Upgrade to 9.1.0-SNAPSHOT-CD successfully completed!

STEP 6: Start the PoolParty Server

Post-Upgrade Tasks

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and JavaScript used in the PoolParty UI have been done.

Run Post Update Scripts

After the upgrade you have to run the PoolParty migration script. To do so, log in to PoolParty after the upgrade and enter:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run those scripts.

Tip

For more information on how to secure the PoolParty's backend, refer to Provide Secure Backend for PPT (Linux).

For more information on how to migrate server and project data, refer to PoolParty Data Migration From Version 8 or Higher to Version 9.0.1 or Higher.

Upgrade PoolParty 9.0 to PoolParty 9.1 on Microsoft Windows

Prerequisites

The following requirements have to be satisfied before you can upgrade your PoolParty installation running on a Microsoft Windows system:

you are running a 64-bit Windows Server 2016 or 2019
you have a valid PoolParty license for the version you want to upgrade to
minimum OpenJDK 11 installed, better OpenJDK 17
If you have no OpenJDK installed, then install OpenJDK 17 and correctly configure JAVA_HOME;
To validate that your installation is successful, enter on the command line echo %JAVA_HOME% to display the Java version (for instance C:\jdk11 or C:\jdk17 ), then enter %JAVA_HOME%\bin\java -version which then returns all the JDK version details.

the PoolParty installer (poolparty.zip) which can be downloaded from our download area
you already run a full backup of your existing PoolParty installation (both system and data)

Note

PoolParty requires OpenJDK 11 respectively 17 to run. After PoolParty 2023 R2 support for Java 11 will be discontinued.

Keycloak

PoolParty comes with Keycloak as an authentication and authorization service. A relational database is recommended to run Keycloak. Keycloak comes with H2 as an embedded database.

Tip

PoolParty 9.1 installation includes Keycloak version 21.1.2.

Important

Upgrade

Tip

The subsequent steps require administrator rights. You can carry these either on the Command Prompt and/or using the SC management console.

To upgrade PoolParty for Windows, do the following:

Stop the Apache Tomcat, Keycloak and Solr services. To do so either call up the management console services.mcs or enter the following commands on the Command Prompt: sc stop keycloak, sc stop SolrPoolParty, sc stop pptomcat9.
Now set the Startup type of these services to Manual and reboot your Windows server to make sure that none of these services are running.
Create a temporary folder in your PoolParty folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Extract the contents of the poolparty.zip archive to this temporary folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Open Command Prompt in the Run as administrator mode and navigate to the C:\opt\poolparty\tmp\bin directory (or <yourdrive>poolparty-installation\tmp\bin).
Run upgrade_poolparty.bat file.
Start services.
1. Open the management console services.msc and navigate to the PoolParty Services.
2. Start the PoolParty Tomcat, Solr and Keycloak services either using the management console or Command Prompt: sc start keycloak, sc start SolrPoolParty, sc start pptomcat9
3. Now set the Startup type of these services back to Automatic to make sure that they will be always restarted whenever the Windows server is rebooted.

Post-Upgrade TasksProvide GraphDB Licenses

If you want to use GraphDB add a valid grahpdb.oem.license file to the <PoolPartyHome>\config\licenses folder.

Clear browser cache

You have to clear your browser cache after the upgrade as changes to the CSS and other dynamic content used in the PoolParty UI have been done.

Run Post-Update Scripts

Upgrade from version 8.1.x to 9.0 requires running a post-installation PoolParty migration script; this script is not required for upgrades from version 9.0.

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the SuperAdministrator role assigned to be able to run these scripts.

For more information, refer to:

Upgrade PoolParty 8.1 to PoolParty 9.0 on Linux

Introduction

To upgrade your PoolParty installation, follow the steps described below. PoolParty's automated upgrade process for GNU/Linux hosts makes this process a breeze.

Warning

Note

You need OpenJDK 11 or 17 to run PoolParty.

Note

These instructions assume you are upgrading a PoolParty default installation for GNU/Linux with PoolParty installed at /opt/poolparty, unless otherwise stated.

Keycloak

Note

You have to complete Keycloak infrastructure preparation to be able to externally access Keycloak. For more details on Keycloak configuration refer to Keycloak Infrastructure Preparation.

PoolParty comes with Keycloak as an authentication and authorization service. A relational database is recommended to run Keycloak. Keycloak comes with H2 as an embedded database.

Important

Upgrade Process

Note

On upgrade we replace SesameSetup.xml file in the config folder. Backup of the original file is done and this is stored in /opt/poolparty/config/SesameSetup.old file.

STEP 1: Stop the PoolParty Server

In order to upgrade you need to stop the PoolParty server.

STEP 2: Run the Installer PoolParty.run from a Terminal Window

This opens a dialogue in the terminal. Press Enter to start the process.

STEP 3: Start Upgrade Mode

In the next step, enter option '2' and press Enter.

STEP 4: Confirm the PoolParty Application Directory (PPAppDir) and the Location for the PoolParty Data Directory (PPDataDir)

If a PPDataDir is found in the PPAppDir the upgrade just skips the next step.

If your installation has a separate path for the PPDataDir enter the path and hit Enter.

STEP 5: Confirm Upgrade Settings are Correct

You are presented with an overview of the settings you made. You can then finalize the upgrade process by pressing Enter.

SETTING                                                  VALUE
Installation directory                                   /opt/poolparty, Access: OK
Data directory                                           /opt/poolparty/data, Access: OK
PoolParty user:group                                     poolparty:poolparty
Upgrade from 8.1.8 to 9.0.0                              OK
Before you upgrade, make sure that you have a working backup of your existing installation.
This installer can copy the existing PoolParty installation and its data folder to your home folder.
Proceed upgrade?
Backup PoolParty & upgrade [o, Enter], Upgrade only [u], Cancel [c]
> u
Upgrading PoolParty ...
[DEBUG] PoolParty properties file found, reading encrpytion salt and password
::: Auth service initialisation START :::
[ Note ] Authentication service admin  credentials: poolparty_auth_admin/<some-generated-passphrase>
 Configuration is on the way ...
 PoolParty superadmin userID: 6a56616e-d8e8-48db-b642-c7cea4dd5319
 PoolParty Group name Public , GroupID: af33fee8-b6c1-431b-9a0b-11640fe1596a
::: Auth service initialisation   END :::
[ Note ] Superadmin Migration credentials: poolpartymigrate/<some-generated-passphrase>
 update graphdb license
Modified configuration files
FILE          CHANGES
Index         NEW, Binaries updated
Tomcat        NEW, Binaries updated
Auth Service  NEW, Auth service configured
PoolParty Upgrade to 9.0.0 successfully completed!

STEP 6: Update Keycloak Connection Configuration

Assuming that the public URL to Keycloak is https://keycloak.domain.org/auth where keycloak.domain.org should be replaced with the actual domain name assigned to Keycloak by your organization, then the following variables should be set accordingly to reflect this URL in the respective configuration files:

Note

Note that it is assumed that the PoolParty installation directory is /opt/poolparty. Please adapt accordingly when PoolParty is installed to a different location.

PP_auth_server_url in /opt/poolparty/config/poolparty.conf
serverUrl in /opt/poolparty/config/keycloak/admin-keycloak.json
auth-server-url in /opt/poolparty/config/keycloak/ppt-keycloak.json
auth-server-url in /opt/poolparty/config/keycloak/ppgs-keycloak.json
auth-server-url in /opt/poolparty/config/keycloak/ppx-keycloak.json

Additionally the actual domain name part of the URL (e.g., keycloak.domain.org) should be set to the value of variable hostname in file /opt/poolparty/auth_service/keycloak/conf/keycloak.conf

STEP 7: Start the PoolParty Server

Keycloak automatically starts when PoolParty is launched. Once PoolParty starts, please verify that Keycloak is correctly accessible by visiting the corresponding Keycloak URL https://keycloak.domain.org/auth

Post-Upgrade Tasks

Enable on-the-fly user migration

After you upgrade PoolParty, users get migrated on-the-fly when they log in for the first time. To make this possible, the installer creates and preconfigures a user federation called User migration using a REST client in Keycloak. If you run PoolParty on a port different to the default port, you need to adapt the settings of this user federation.

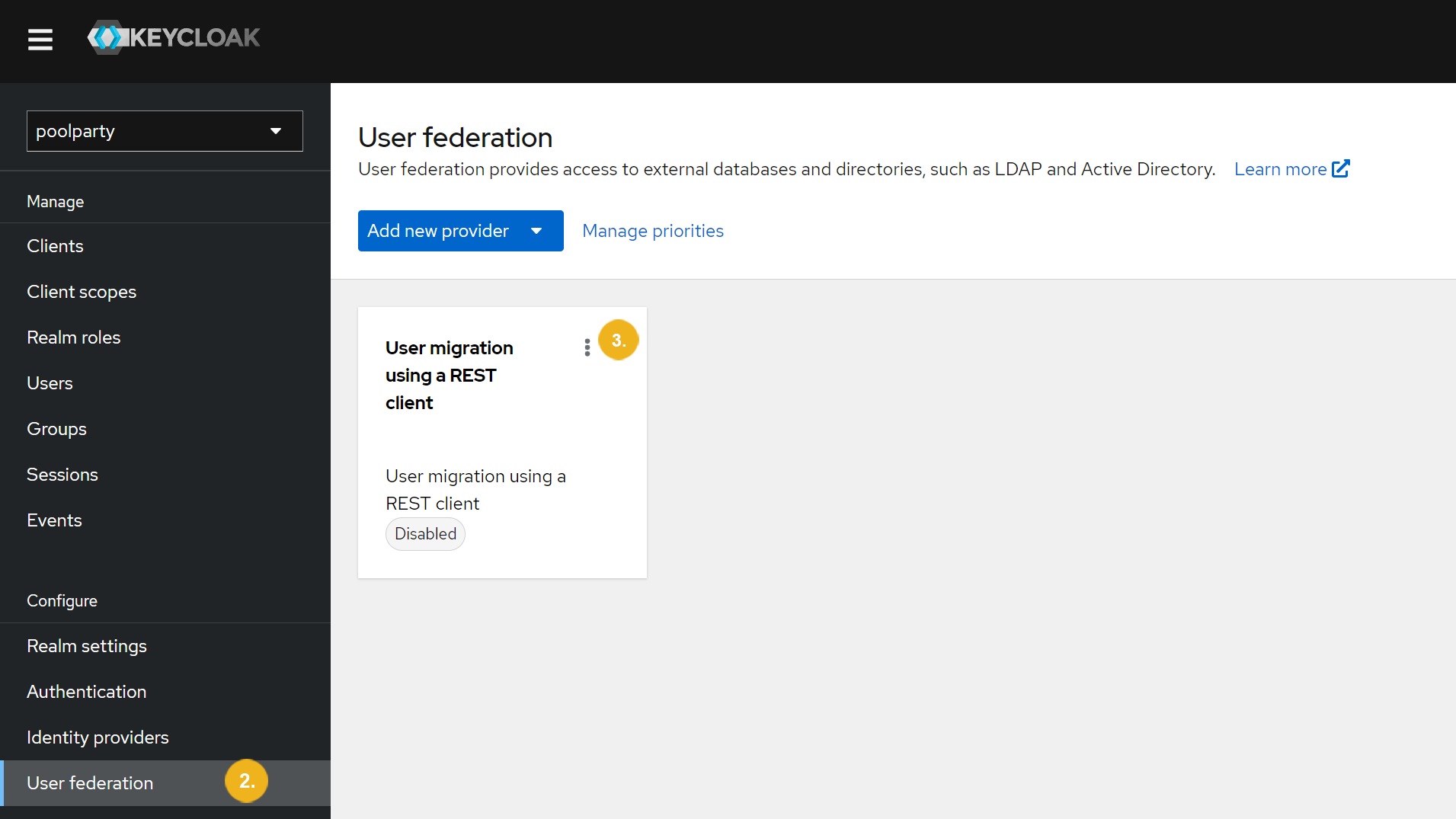

Access Keycloak. For more information, refer to Access Keycloak for PoolParty On-Premise.
Go to User federation.
Select User migration using a REST client.
Change the Rest client URI to include the port number.
For example, if you use port 8081, change it to http://servername:8081/poolparty-user-migrator/users.
Confirm your changes with Save.

Note

Users are migrated only when they log in for the first time. A user does not exist in PoolParty until the user logs in and runs migration. This means in PoolParty user administration view you might find users "disappeared" from the list of all users. It is temporary since a user only shows up in the list after migration. Therefore, the list of all users will grow towards completion gradually as users finish migration.

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and javascript used in the PoolParty UI have been done.

Run Post Update Scripts

After you login into PoolParty for the first time after the upgrade, you have to run the PoolParty migration script:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the Superadministrator role assigned to be able to run those scripts.

Tip

For more information on how to secure the PoolParty's backend, refer to Provide Secure Backend for PPT (Linux).

For more information on how to migrate server and project data, refer to PoolParty Data Migration From Version 8 or Higher to Version 9.0.1 or Higher.

Upgrade PoolParty 8.1 to PoolParty 9.0 on Microsoft Windows

Prerequisites

To upgrade your PoolParty installation on Microsoft Windows, your system shall fulfill the following requirements:

Upgrade incrementally including minor versions. For example, if you have a 8.0 installation, you cannot upgrade to 9.0 straight away. You need to upgrade to PoolParty 8.1 and only then to 9.0.
Install OpenJDK.
Configure JAVA_HOME. It is mandatory.
Download the poolparty.zip from our download area.
Have a valid licence for the version you want to upgrade to.
Backup existing PoolParty PoolParty installation.
These instructions assume you are upgrading a PoolParty default installation for Windows with the following default directory: C:\opt\poolparty

Keycloak

PoolParty comes with Keycloak as an authentication and authorization service. A relational database is recommended to run Keycloak. Keycloak comes with H2 as an embedded database.

Important

Upgrade

To upgrade PoolParty for Windows, do the following:

Stop the Apache Tomcat and Solr services.
Set the Startup type of these services to Manual.
Reboot your Windows server to make sure there are no remainings of the services running.
Create a temporary folder in your PoolParty folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Extract the contents of the poolparty.zip archive to this temporary folder: C:\opt\poolparty\tmp (or <yourdrive>poolparty-installation\tmp)
Open Command Prompt in the Run as administrator mode and navigate to the C:\opt\poolparty\tmp\bin directory (or <yourdrive>poolparty-installation\tmp\bin).
Run upgrade_poolparty.bat file.
Start services.
1. Open the management console services.msc.
2. Navigate to the PoolParty Services.
3. Start the services:
  1. Start Keycloak.
  2. Start Solr.
  3. Start Tomcat.

Post-Upgrade Tasks

Provide GraphDB Licenses

If you want to use GraphDB:

Provide the valid licence information in the <PoolPartyHome>\config\licenses folder.
Provide the grahpdb.oem.license in the <PoolPartyHome>\config\licenses folder.

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and javascript used in the PoolParty UI have been done.

Run Post Update Scripts

When you log in to PoolParty for the first time after the upgrade, you have to run the PoolParty migration script:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

For more information, refer to Migrate Data From PoolParty 8 or Higher to 9.0 or Higher

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the Superadministrator role assigned to be able to run those scripts.

For more information, refer to:

Keycloak Infrastructure Preparation

Introduction

During PoolParty 9.0 installation or upgrade from version 8.1 to 9.0 the Keycloak application will be also installed. By default it is installed as a separate application in the same environment where PoolParty is installed.

Keycloak has its own Web server which listens to port 8181, and the application is accessible at path/auth. Therefore, after a fresh installation, its Web application is reachable at http://keycloak.server.ip.address:8181/auth where keycloak.server.ip.address is the IP address of the server where Keycloak is installed.

Tip

Please refer to Change the Keycloak Port if Keycloak needs to be configured to run on a different port. This can only be done after the installation!

Keycloak has to be externally accessible by users in a similar way as PoolParty applications, because Keycloak directly receives and processes users authentication and authorization requests.

Consequently, connections to Keycloak should be secured by SSL/TLS to enable HTTPS access.

Note

Before proceeding with PoolParty installation or update, please make sure the following infrastructure configuration has been implemented so that Keycloak is externally accessible.

In modern IT infrastructure HTTP connections without any encryption are not allowed for security reasons; furthermore only a limited number of ports is open in a secure IT environment. It is a common practice today to have a gateway, reverse proxy or load balancer to provide for the exposure of the application's port and encryption to this port. Typical solutions include Nginx for in-house operations, Amazon Elastic Load Balancing (ELB) for AWS cloud infrastructure, Azure Application Gateway for Azure cloud infrastructure. Please refer to the corresponding AWS and Azure documentation for more details related to your cloud infrastructure.

Your infrastructure for Keycloak needs to be appropriately configured so that Keycloak is exposed and externally accessible. The expected outcome of the configuration is that an HTTPS URL such as https://keycloak.domain.name/auth where keycloak.domain.name is the custom domain name configured for the Keycloak application accessible to users and its connections are properly forwarded to and received by the Keycloak application running at http://keycloak.server.ip.address:8181/auth.

HTTPS and TLS termination have to be implemented at the the gateway respectively proxy level using the CA signed certificates associated with the custom domain name for Keycloak so that the connection between external users and the gateway/proxy is secured.

With the aforementioned configuration, the communication between PoolParty and Keycloak, and between Keycloak and the gateway/proxy remains a plain HTTP connection. To implement the highest security standards, it is recommended that end-to-end encryption is implemented for all communication.

Note

Please refer to Security Configuration documentation for more details on how to implement HTTPS at the application backend.

Once Keycloak has been installed and is running and assuming that the configuration is correct, then when a user opens a public Keycloak URL such as https://keycloak.domain.name/auth in their browser, the Keycloak web user interface will be displayed. The screenshot below illustrates a successful access to the Keycloak web interface.

Note

Also note the lock icon next to the URL indicating a secure connection.

Upgrade PoolParty to Version 8.1 on Linux

Introduction

To upgrade your PoolParty installation, follow the steps described below. PoolParty's automated upgrade process for GNU/Linux hosts makes this process a breeze.

Warning

We strongly recommend to completely back up your installation before you try to perform an upgrade. Be advised that the users of PoolParty need to refresh their browser's cache after an upgrade. Failure to do that might result in unexpected behaviour when using PoolParty (this is a common phenomenon for applications using Ajax technology). Please refer the users to the Troubleshooting in the user manual for instructions on how to clear cache of their browser.

Note

An OpenJDK or a 64-bit build of a Sun/Oracle Java 11 SE Development Kit is required to run PoolParty.

Note

These instructions assume you are upgrading a PoolParty default installation for GNU/Linux with PoolParty installed at /opt/poolparty, unless otherwise stated.

Note

Password Change Policy (mandatory):

New users and legacy users have to change passwords on their first login. After logging in a user cannot execute any functions, until the password is changed. This way a password is less likely to be misused.

Upgrade Process

Note

On upgrade we replace SesameSetup.xml file in the config folder. Backup of the original file is done and this is stored in /opt/poolparty/config/SesameSetup.old file.

STEP 1: Stop the PoolParty Server

In order to upgrade you need to stop the PoolParty server.

STEP 2: Run the Installer PoolParty.run From a Terminal Window

This opens a dialogue in the terminal. By hitting Enter you start the process.

STEP 3: Start Upgrade Mode

In the next step choose to do an upgrade by entering option '2' and hitting Enter.

STEP 4: Confirm the PoolParty Application Directory (PPAppDir) and the Location for the PoolParty Data Directory (PPDataDir)

Provide the path for your PoolParty application directory (default: /opt/poolparty). Enter the path of your installation if different than /opt/poolparty and hit Enter or just hit Enter to use the default path.

If a PPDataDir is found in the PPAppDir the upgrade just skips the next step.

If your installation has a separate path for the PPDataDir enter the path and hit Enter.

STEP 5: Confirm Upgrade Settings are Correct

You are presented with an overview of the settings you made. You can then finalize the upgrade process by hitting Enter.

STEP 6: Start the PoolParty Server

Post-Upgrade Tasks

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and javascript used in the PoolParty UI have been done.

Run Post Update Scripts

After you login into PoolParty for the first time after the upgrade, you have to run the PoolParty migration script:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the Superadministrator role assigned to be able to run those scripts.

Upgrade PoolParty 8.0 on Microsoft Windows

This guide is for doing a minor update for PoolParty 8.0. You shall have PoolParty 8.0 installed to be able to use this guide.

Warning

This is not a guide to upgrade from PoolParty 7 to 8, if you are upgrading from 7.2 then follow this guide: Upgrade PoolParty 7.2. to PoolParty 8.0 on Microsoft Windows.

Warning

We strongly recommend to completely back up your installation before you try to perform an upgrade. Be advised that the users of PoolParty need to refresh their browser's cache after an upgrade. Failure to do that might result in unexpected behaviour when using PoolParty (this is a common phenomenon for applications using Ajax technology). Please refer the users to the Troubleshooting in the user manual for instructions on how to clear cache of their browser.Upgrade PoolParty 8.0 on Microsoft Windows

Prerequisites

To upgrade your PoolParty installation on Microsoft Windows, your system shall fulfil the following requirements:

You are running a version of PoolParty 8, e.g. 8.0.2
Have an installedOpenJDK or a 64-bit build of a Sun/Oracle Java 11 SE Development Kit.
Configure JAVA_HOME. It is mandatory.
Download the poolparty.zip.
Have a valid licence for the version you want to upgrade to.
Backup existing PoolParty config and data folders.

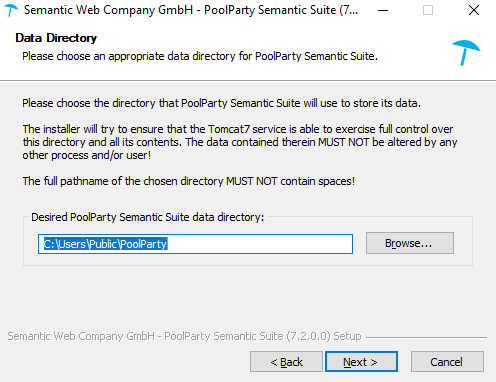

Check the correct location for the data directory ( you can find the exact value of the directory in the configuration values of the registry HKEY_LOCAL_MACHINE\SOFTWARE\Semantic Web Company GmbH\PoolParty Thesaurus Manager ) , lets assume that it is C:\Users\Public\PoolParty\.

Note

These instructions assume you are upgrading a PoolParty default installation for Windows with the following default directories used, respectively:

PoolParty's data-files C:\Users\Public\PoolParty\ or C:\Users\poolparty\PoolParty\

Upgrade

To upgrade PoolParty for Windows, do the following:

Stop Apache Tomcat (tomcat9) and Solr7.
Set the Startup type of these services to Manual.
Restart the Microsoft Windows server.
Create a temporary folder in your PoolParty folder: C:\Users\Public\PoolParty\tmp (or <yourdrive>PoolPartyData\tmp)
Copy the contents the poolparty.zip archive to this temporary folder: C:\Users\Public\PoolParty\tmp (or <yourdrive>PoolPartyData\tmp)
Paste it to the tmp folder. It should look like this:
Paste the contents here.
Open Command Prompt in Run as administrator mode and navigate to the C:\Users\Public\PoolParty\tmp\bin directory. (or same for <yourdrive>PoolPartyData\tmp\bin)
Run upgrade_poolparty.bat file.
Press YES in dialog box's.
Start Solr7 Windows service.
Start Apache Tomcat service (tomcat9). It might take 120 -180 seconds to access PoolParty depending on the speed of the hardware.
Cleanup the temp folder C:\Users\Public\PoolParty\tmp.

Post-Upgrade Tasks

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and javascript used in the PoolParty UI have been done.

Run Post Update Scripts

After you login into PoolParty for the first time after the upgrade, you have to run the PoolParty migration script:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade. For more, see: Create an Extraction Model

Note

You need to have the Superadministrator role assigned to be able to run those scripts. For more, see: User Roles in PoolParty.

Upgrade PoolParty 7.2. to PoolParty 8.0 on Microsoft Windows

Prerequisites

To upgrade your PoolParty installation on Microsoft Windows, your system shall fulfill the following requirements:

Upgrade incrementally including minor versions. For example, if you have a 7.0 installation, you can not upgrade to 8.0 straight away. You need to upgrade to PoolParty 7.1 and then 7.2 and finally 8.0.
Install an OpenJDK or a 64-bit build of a Sun/Oracle Java 11 SE Development Kit.
Configure JAVA_HOME. It is mandatory.
Download the poolparty.zip.
Have a valid licence for the version you want to upgrade to.
Backup existing PoolParty config and data folders.
Check the correct location for the data directory ( you can find the exact value of the directory in the configuration values of the registry HKEY_LOCAL_MACHINE\SOFTWARE\Semantic Web Company GmbH\PoolParty Thesaurus Manager ) , lets assume that it is C:\Users\Public\PoolParty\.
- Apache Tomcat C:/Program Files/Apache Software Foundation/Tomcat 7.xx/
- PoolParty's data-files C:\Users\Public\PoolParty\or C:\Users\poolparty\PoolParty\

Note

These instructions assume you are upgrading a PoolParty default installation for Windows with the following default directories used, respectively:

Apache Tomcat C:/Program Files/Apache Software Foundation/Tomcat 7.xx/
PoolParty's data-files C:\Users\Public\PoolParty\ or C:\Users\poolparty\PoolParty\

Upgrade

To upgrade PoolParty for Windows, do the following:

Stop Apache Tomcat (tomcat7) and Solr7.
Set the Startup type of these services to Manual.
Create a temporary folder in your PoolParty folder: C:\Users\Public\PoolParty\tmp (or <yourdrive>PoolPartyData\tmp)
Copy the contents the poolparty.zip archive to this temporary folder: C:\Users\Public\PoolParty\tmp (or <yourdrive>PoolPartyData\tmp)
Paste it to the tmp folder. It should look like this:
Paste the contents here.
Open Command Prompt in Run as administrator mode and navigate to the C:\Users\Public\PoolParty\tmp\bin directory. (or same for <yourdrive>PoolPartyData\tmp\bin)
Run upgrade_poolparty_7x_8_0_x.bat file.
Press YES in dialog box's.
Start Solr7 Windows service.
Start Apache Tomcat service (tomcat9). It might take 120 -180 seconds to access PoolParty depending on the speed of the hardware.
Run <yourdrive>PoolPartyData\tmp\bin\ pp7regcleanup.bat with administrator privileges . This will clean up the PoolParty 7 registry entries.
Remove/Uninstall Apache Tomcat 7.
Cleanup the temp folder C:\Users\Public\PoolParty\tmp.

Post-Upgrade Tasks

Clear browser cache

You have to clear your browser cache after the upgrade as changes to CSS and javascript used in the PoolParty UI have been done.

Run Post Update Scripts

After you login into PoolParty for the first time after the upgrade, you have to run the PoolParty migration script:

https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that will be done. Trigger the migration by clicking Start Migration.

A progress bar and an info box show the progress and status of the migration. When the process has been finished an overview of the migration steps per project is provided.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the Superadministrator role assigned to be able to run those scripts.

Upgrade PoolParty 6.0, 7.0, 7.1 to PoolParty 7.2. on Microsoft Windows

Introduction

To upgrade your PoolParty installation, follow the steps described below. PoolParty's automated upgrade process for Windows hosts makes this process a breeze.

Note

A 64-bit build of a Sun/Oracle Java 8 SE Development Kit is required to run PoolParty.

Note

These instructions assume you are upgrading a PoolParty default installation for Windows with the following default directories used, respectively:

Apache Tomcat C:/Programs/Apache Software Foundation/Tomcat 7.0/
PoolParty's data-files C:\Users\Public\PoolParty\ or C:\Users\poolparty\PoolParty\

Note

Password Change Policy (mandatory):

Upgrade Process

Note

On upgrade we replace SesameSetup.xml in the config folder. A backup of the original file is done and this is stored in C:\Users\poolparty\PoolParty\config\oldSesameSetup\SesameSetup.xml file.

STEP 1: Stop the PoolParty Server and Related Services

In order to upgrade you need to stop the PoolParty server as well as all related services of Tomcat and Solr. For details, refer to PoolParty's Windows Services.

STEP 2: Start the PoolParty Setup

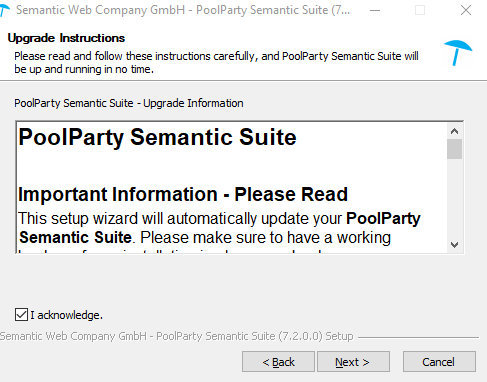

Start the PoolPartySetup.exe. A dialogue with PoolParty upgrade information is displayed. Read the information carefully and acknowledge it before you proceed.

STEP 3: Confirm Correct Location of Data Directory

In the next step, the current location of the data directory of your existing PoolParty installation is displayed. e.g. C:\Users\Public\PoolParty\

Check if the correct location is preselected. Click Install to proceed with the installation.

STEP 4: Finalise the PoolParty Upgrade

In the next step, a progress bar indicates the progress of your upgrade. Click Next to proceed with the installation.

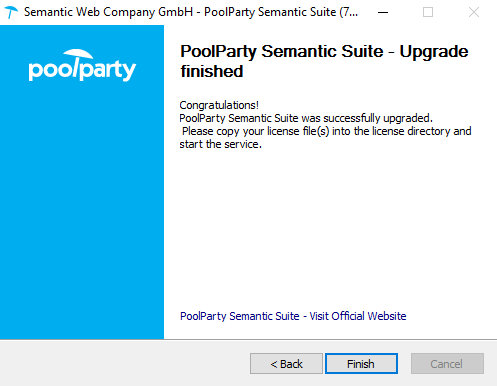

PoolParty's integrated Solr server starts. Click Finish to close the installer.

STEP 5: Start the PoolParty Server and Related Services

Start the PoolParty server and the related services of Tomcat and Solr, similar to step 1 of these instructions. For details also refer to: PoolParty's Windows Services

Post-Upgrade Tasks

Clear Browser Cache

You have to clear your browser cache after the upgrade as changes to CSS and javascript used in the PoolParty UI were done.

Run Post Update Scripts

After you login into PoolParty for the first time after the upgrade, you have to run the PoolParty migration script: https://<your-serverurl>/PoolParty/!/migrate/upgrade

The script lists all updates that is going to be done. Trigger the migration by clicking Start Migration. A progress bar and an info box show the progress and status of the migration.

When the process is finished an overview of the migration steps per project is provided.

Recalculate Extraction Models

Changes to the configuration of the PoolParty extraction model have been done. You have to recalculate all extraction models after the upgrade.

Note

You need to have the Superadministrator role assigned to be able to run those scripts.

In this section:
