GraphEditor - Label Mappings Tab
GraphEditor - Label Mappings Tab
This section contains a short guide on the options in the Label Mappings tab of the graph editor.
A graph editor you created in PoolParty will have a couple of label mappings already present by default.
These mappings determine, which properties are visible in your graph editor's table, in the GraphEditor - Search & Edit Tab tab and where, in the order of the table columns.
In this example you see the URI for the RDF specification of 'preferred label' mapped to the actual label in your editor. The labels you use here for each URI are entirely up to your choice.
This document describes the options available in the Label Mappings tab.
You find information on how to edit existing mappings here: GraphEditor - How to Edit a Label Mapping.

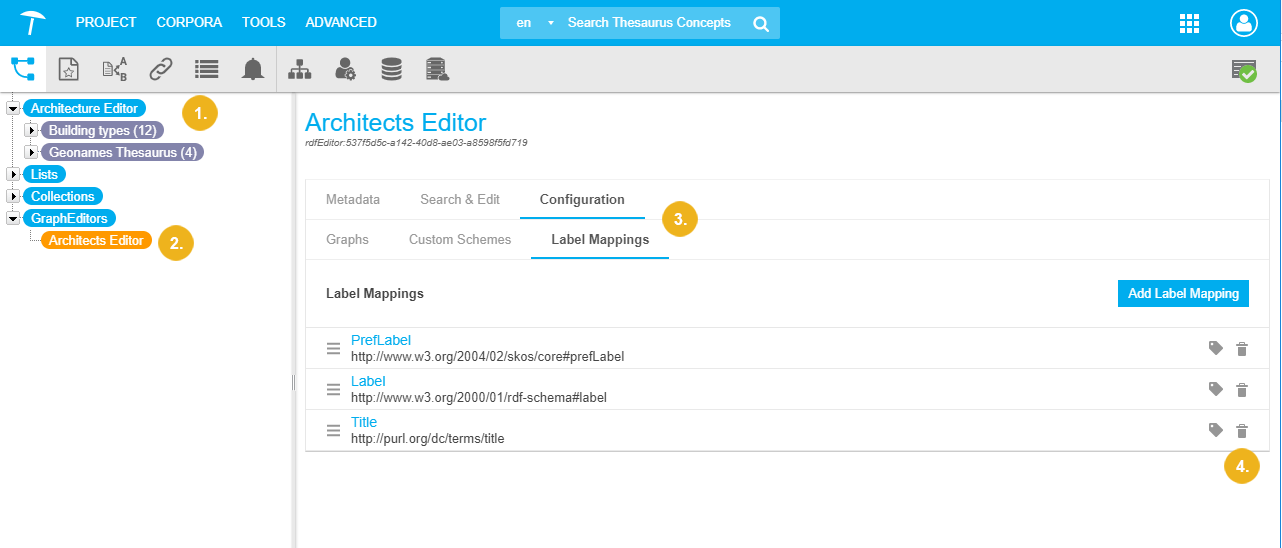

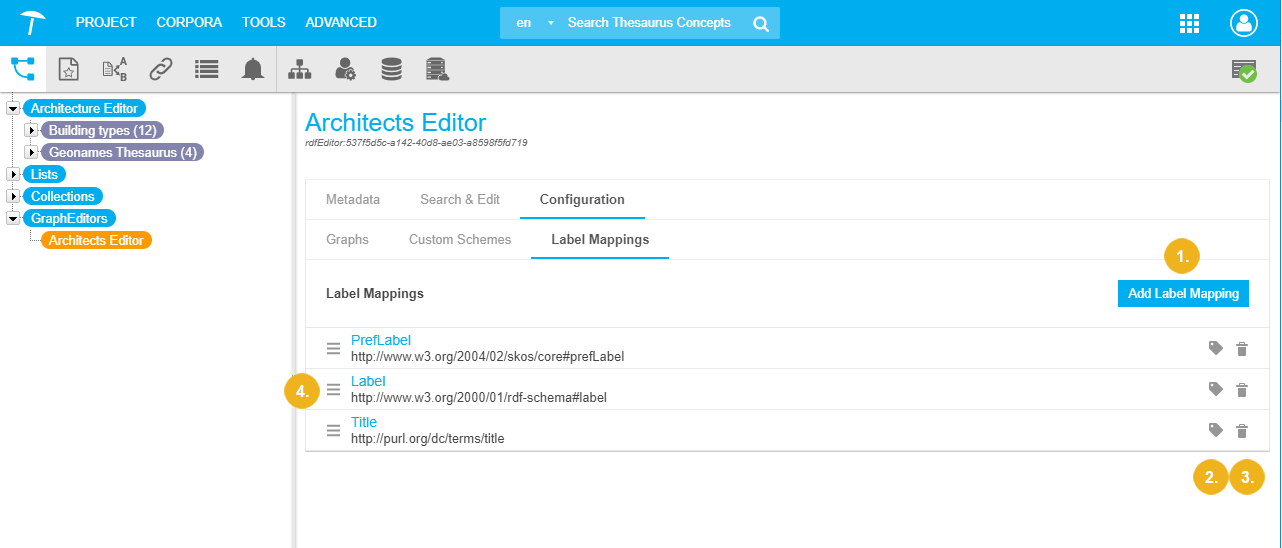

In the Label Mappings tab you have the following options:
Add a new mapping:GraphEditor - How to Add a Label Mapping.
Edit the label of an existing mapping: GraphEditor - How to Edit a Label Mapping.
Delete the whole mapping: GraphEditor - How to Delete a Label Mapping.
Reorder the existing mappings: GraphEditor - How to Reorder Existing Label Mappings.
 |
GraphEditor - How to Add a Label Mapping
GraphEditor - How to Add a Label Mapping
This section contains a short guide on how to add a label mapping in the graph editor in PoolParty.

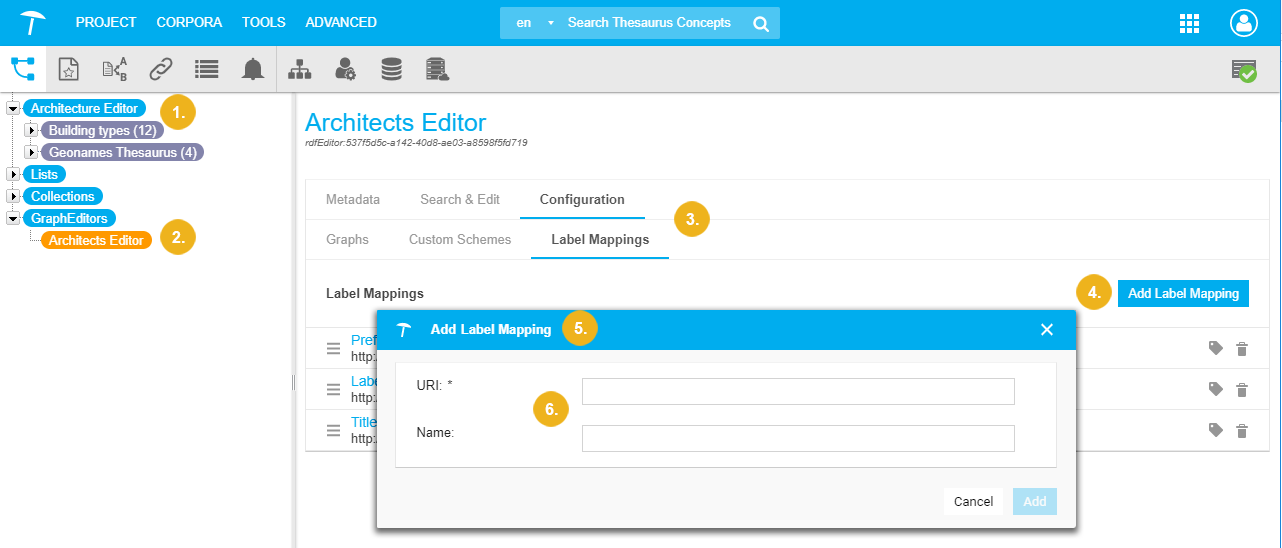

In order to add a label mapping to an existing graph editor, follow these steps:
Open your PoolParty project.
Open the Configuration tab, then click the Label Mappings tab.
On the right in the Details View, click Add Label Mapping.
The Add Label Mapping dialogue opens.
In the URI field enter the resource's URI (mandatory entry).
In the Name field enter a name of your choice (optional).
Click Add to confirm your changes.
 |
GraphEditor - How to Edit a Label Mapping
GraphEditor - How to Edit a Label Mapping
This section contains a short guide on how to edit an existing label mapping in the graph editor.
You can edit a label mapping once it has been created by changing its name.

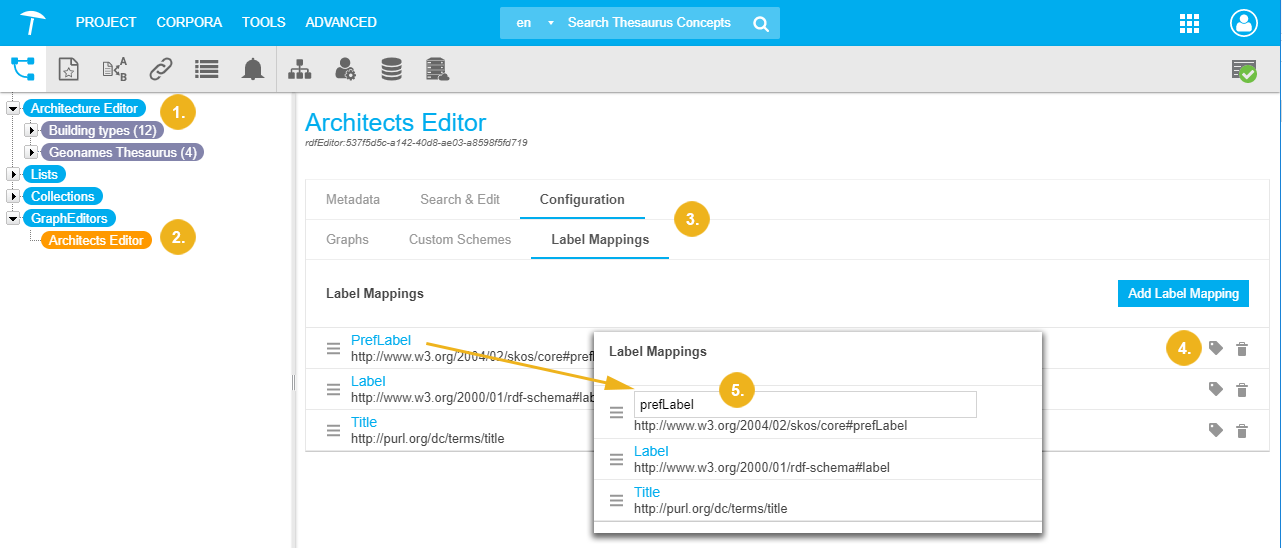

In order to edit an existing label mapping in your graph editor, follow these steps:
Open your PoolParty project.
Open the Configuration tab, then click the Label Mappings tab.
Find the label mapping you want to edit. At the end of its row, click the Edit icon.
The name of the label will become editable.
Enter a new name for it.
Click below the field in the label mapping's row to confirm your changes.
 |
GraphEditor - How to Reorder Existing Label Mappings
GraphEditor - How to Reorder Existing Label Mappings
This section contains a short guide on how to reorder existing label mappings in the PoolParty graph editor.
In a list of existing labels you can reorder them to change the order of their display in your graph editor's Search & Edit table.
PoolParty will parse your data based on these mappings. The first label in this list that exists for a resource, when there are more than one, will then be used to display the name for that resource.
The first label mapping will also be the left-most column in your table's display.

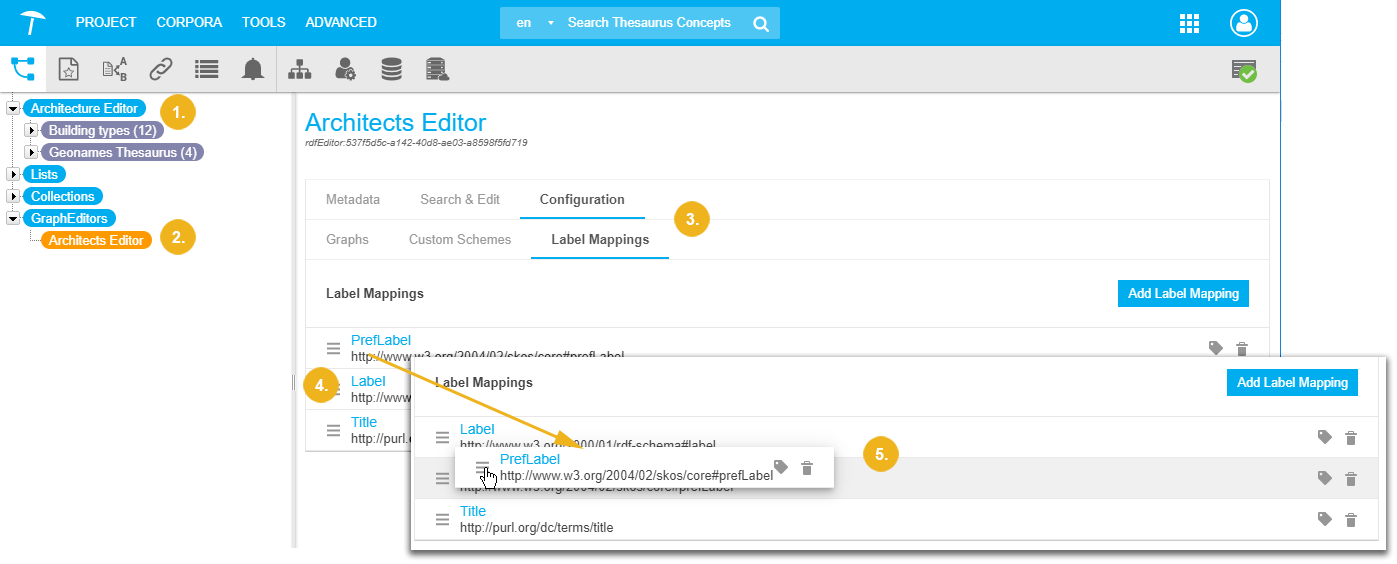

In order to reorder the label mappings in your Label Mappings tab, follow these steps.
Open your PoolParty project.
Open the Configuration tab, then click the Label Mappings tab.
In the list of label mappings, find the one you want to move up or down.
On the left, use the handle by clicking, then drag the entry using your mouse cursor, and by releasing it, move it to the new position in the list.
 |
GraphEditor - How to Delete a Label Mapping
GraphEditor - How to Delete a Label Mapping
This section contains a short guide on how to how to delete an existing a label mapping in the graph editor.
In order to delete a label mapping from the list, follow these steps:
Open your PoolParty project.
Open the Configuration tab, then click the Label Mappings tab.
At the end of the row of the label mapping you want to delete, click the Delete icon.
PoolParty will display a dialogue to ask, if you really want to delete the label.
Click Confirm in the message dialogue to save your changes.
 |
